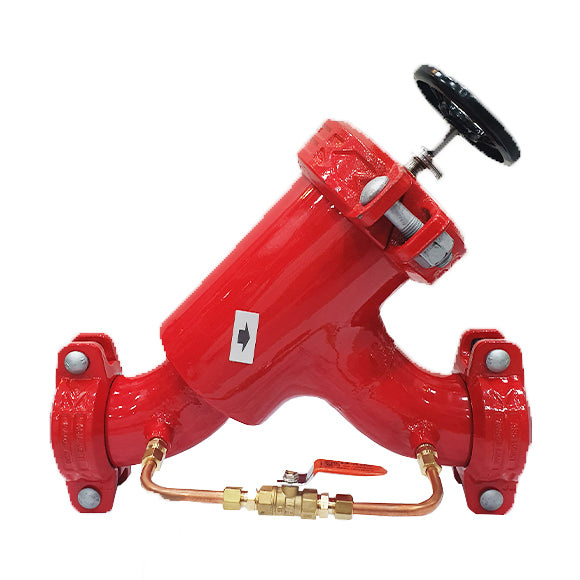

4-in-1 check valve (Horizontal)
4-in-1 check valve (Horizontal)

4-in-1 check valve (Horizontal)

The only steel pipe valve developed by our company in Korea.
It is a very lightweight, earthquake-resistant, durable, and corrosion-resistant valve.

  • Vertical piping type
  • Body Material : WPB, SPP, SPPS250, Stainless steel
  • Gasket Material : EPDM

Product specification

It is the only steel pipe valve developed by our company in Korea and is a valve product with very good weight reduction, earthquake resistance, durability, and corrosion resistance.


Characteristics of Steel Pipe Valve
Safety 1) There is no risk of leakage because the structure is dense through molding, not casting.
2) Compared to casting, it is safe because there is no material defect.
3) As it is made of steel, it is more resistant to stratification than cast iron, so there is less risk of damage.
Economic feasibility 1) The wall thickness is thin and light in weight, so it is easy to handle and the construction time is reduced.
2) It is highly competitive in price by using existing government subsidiaries.
Handling 1) The entrance/exit shape can be applied in various ways, such as flanges and grooves.
2) There is no limit to the application of the flange specification.
3) Because the cap connection is joint, it is easy to disassemble and assemble.
4) The cap gasket can be reused after disassembly.






[ Product specification]

Applicable Fluid Water
Applicable
Inlet Press.		 For 10K □ Max. 10kg/ ㎠
For 20K □ Max. 20kg/ ㎠
Applicable Temp.(Max.) Water: 110 ℃
Hydrostatic Test For 10K □ Max. 15kg/ ㎠
For 20K □ Max. 30kg/ ㎠
End Connection AAC-1FF KS 10K FF (80~250A)
KS 10K RF (300~500A)
ACC-2FF KS 20K RF Flanged
AAC-1GF, 2GF In x Out: Flanged x Grooved
ASC-1GG, 2GG In x Out: Grooved x Grooved

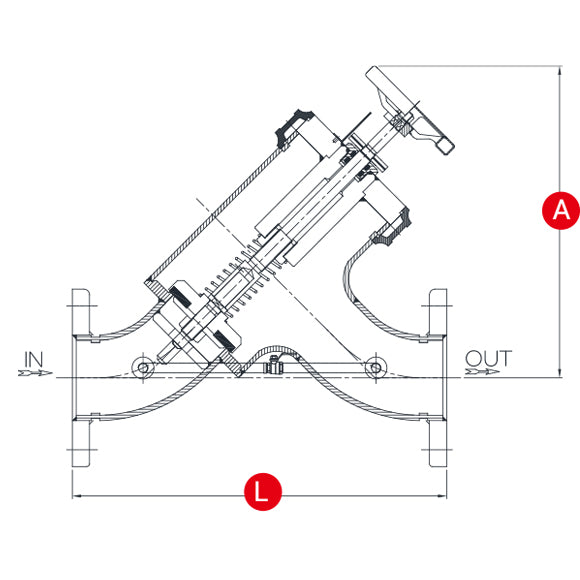

SIZE
DN
Inch		 Dimension
L A(Full Open)
Flanged Grooved Flanged, Grooved
50
2		 271 261 250
65
2.1/2		 310 300 284
80
3		 295 356 328
100
4		 363 420 393
125
5		 455 508 463
150
6		 550 604 535
200
8		 694 760 622
250
10		 830 910 712
300
12		 974 1075 858
350
14		 1120 1100 930
400
16		 1256 1246 1080

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
