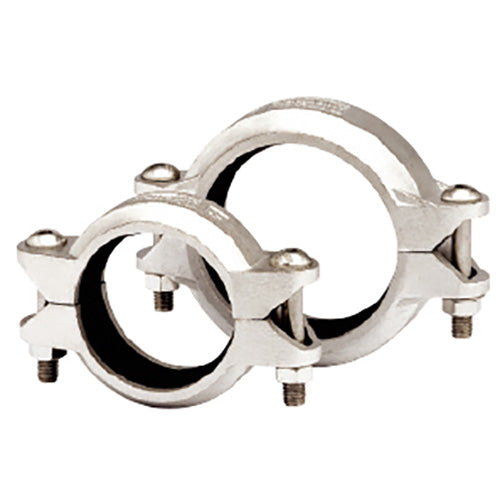

The STS joint is made of stainless steel with joint covers, bolts and nuts and can be applied to stainless steel piping.

  • Grooved joint Flexible type
  • Joint material: Stainless steel (ASTM A351 CF8, SCS-13 )
  • Gasket material: EPDM
  • Bolt/nut material: Stainless steel

Product specification

The STS joint is made of stainless steel with joint covers, bolts and nuts and can be applied to stainless steel piping.

The Model AJ130F is a flexible coupling designed for a variety of general service and specialty applications. The AJ130F is supplied standard in CF8 (304) with 304 nuts.

AJ130F couplings should always be installed so that the coupling bolt pads make metal to metal contact.

The tongue and groove style rigid coupling may allow for rotation of pipe when installed on deeper than specified grooves.

Material specification

  • Housing: Type 304 Stainless steel to ASTM A351 CF8 or SCS-13.
    - Type 316 to ASTM A351 CF8M (Option)
    - Type 316L to ASTM A351 CF3M (Option)
    - Duplex 2205 to ASTM A890 4A (Option)
    - Super Duplex 2507 to ASTM A890 SA (Option)
    - Duplex 254SMO to ASTM A351 CK3McuN (Option)
  • Rubber Gasket: Grade EPDM certified under NSF/ANSI 61.
  • Bolts & Nut: Type 304 Stainless steel track bolts & nuts.

[ Product specification ]

Nominal Size
DN
Inch		 Pipe O.D.
(mm)		 Max.Working
Pressure
(kgf/cm2)		 Max.End Load
(kN)		 Allow.
Pipe End Sep
(mm)		 Degrees-
per Joint		 Pipe Deflection

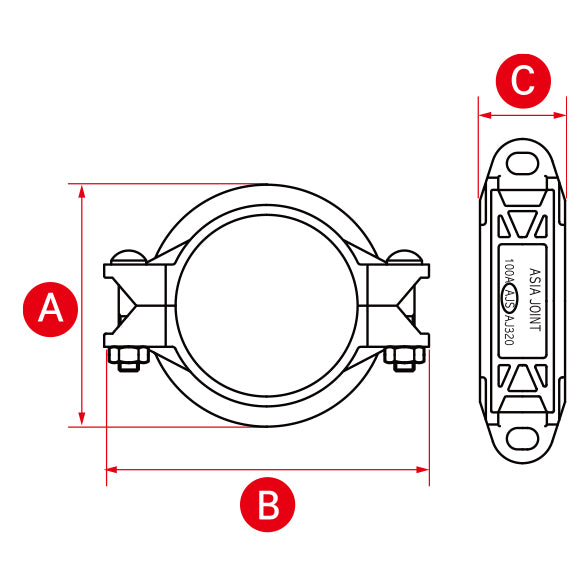

(mm/6m)		 Dimensions
(mm)		 Bolt Size (ΦxL) Wrench Size
(mm)		 Weight
(kg)
A B C
25
1		 34.0 32 2.9 1.3 2.19˚ 229.33 57 96 44 M10 X 50 17 0.51
32
1.1/4		 42.7 32 4.6 1.6 2.16˚ 226.30 65 106 44 M10 X 50 17 0.58
40
1.1/2		 48.6 32 5.9 1.6 1.90˚ 199.04 71 111 44 M10 X 50 17 0.66
50
2		 60.5 32 9.2 1.6 1.51˚ 158.16 84 129 45 M10 X 50 17 0.82
65 76.3 32 14.6 1.6 1.20˚ 125.68 100 147 46 M10 X 55 17 1.04
2.1/2" 73.0 32 14.6 1.6 1.20˚ 125.68 98 144 46 M10 X 55 17 1.04
80
3		 89.1 32 20.0 1.6 1.03˚ 107.87 112 165 47 M12 X 75 19 1.24
100
4		 114.3 32 32.8 3.2 1.60˚ 167.60 142 198 51 M12 X 75 19 1.78
125 139.8 24 36.8 3.2 1.31˚ 137.21 171 234 51 M16 X 75 24 2.40
5" 141.3 24 36.8 3.2 1.31˚ 137.21 174 235 51 M16 X 75 24 2.40
150 165.2 24 51.4 3.2 1.11˚ 116.25 202 270 51 M16 X 90 24 4.51
6" 168.3 24 51.4 3.2 1.11˚ 116.25 207 273 51 M16 X 90 24 4.51
200 216.3 24 88.2 3.2 1.83˚ 191.70 261 350 61 M24 X 140 32 8.24
8" 219.1 24 88.2 3.2 1.83˚ 191.70 264 353 61 M24 X 140 32 8.24
250 267.4 21 112.3 3.2 1.33˚ 139.30 315 400 65 M24 X 140 32 8.48
10" 273.0 21 112.3 3.2 1.33˚ 139.30 321 406 65 M24 X 140 32 8.48
300 318.5 21 159.4 3.2 1.13˚ 118.35 370 461 65 M24 X 170 32 12.22
12" 323.9 21 159.4 3.2 1.13˚ 118.35 375 466 65 M24 X 170 32 12.22

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
* The shown working pressure is based on a Sch. 10S pipe with a roll groove.
