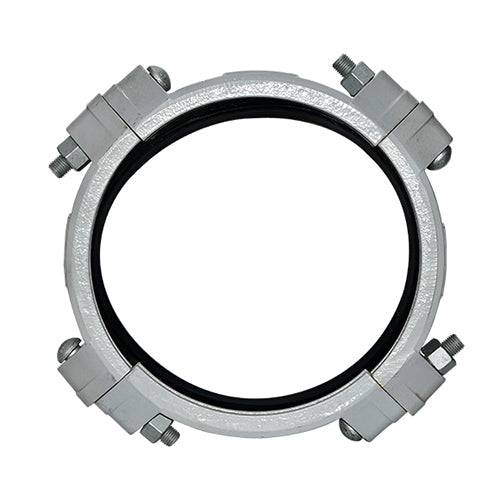

Instead of pipe groove processing, the ring is welded to enable stronger fastening of large-diameter pipes.

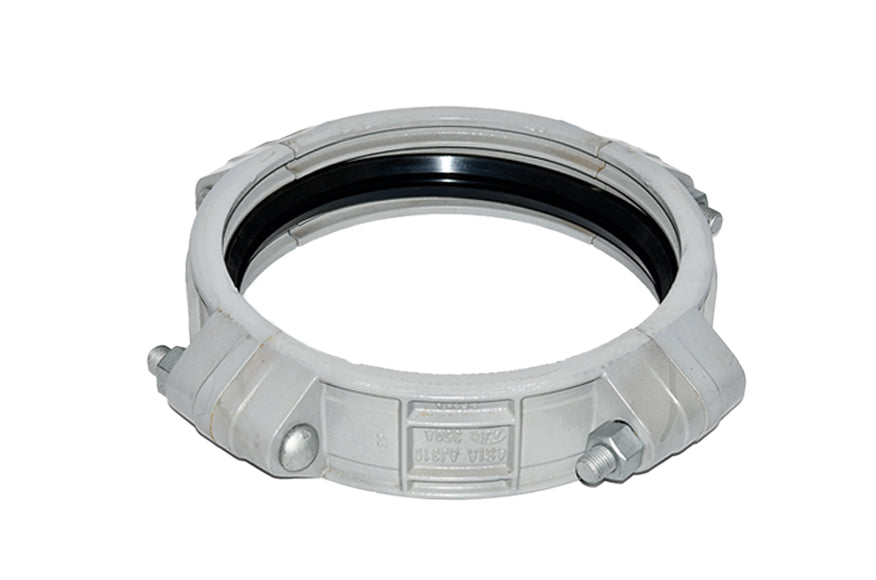

  • Ring Joint
  • Joint material: Spherical graphite cast iron (ASTM A536, GCD450)
  • Gasket material: EPDM
  • Bolt/nut material: Carbon steel for mechanical structure
  • Painting: Epoxy powder painting

Product specification

It is a product that welds rings instead of pipe grooves to allow stronger fastening of large diameter pipes.
It is mainly applied to buried pipes such as water pipes, and ring joints have a gap and bending angle at the end of a unique pipe according to the standard It absorbs changes in pipe length due to expansion, expansion, and vibration to relieve pipe fatigue.
It is designed to be suitable for seismic design in pipe pipes over 350A.

Nominal Size
DN
inch		 Pipe O.D
(mm)		 Working
Pressure
(kgf/cm2)		 Dimensions
(mm)		 Bolt/Nut Wrench Size
(mm)

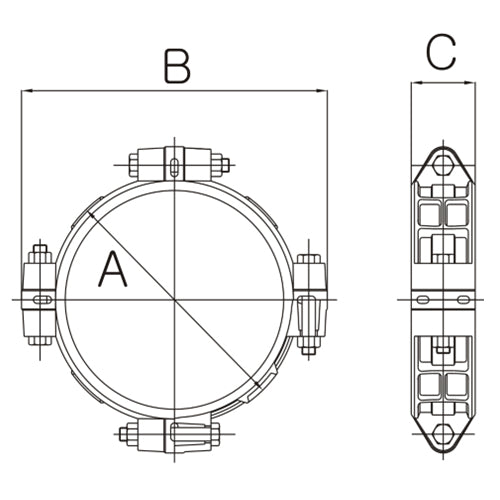

A B C
350
14		 355.6 <20 410 502 100 M22x155 32
400
16		 406.4 <20 469 554 100 M22x155 32
450
18		 457.2 <20 520 610 100 M22x155 32
500
20		 508.0 <20 583 665 110 M24x165 32
600
24		 609.6 <20 685 762 112 M20x165 30
700
28		 711.2 <20 802 872 126 M22x205 32
800
32		 812.8 <20 909 983 131 M22x205 32
900
36		 914.4 <20 1016 1092 131 M22x205 32
1000
40		 1016.0 <20 1123 1205 137 M22x205 32
1100
44		 1117.6 <10 1227 1326 150 M24x210 32
1200
48		 1219.1 <10 1338 1436 162 M27x220 41
1350
54		 1371.6 <10 1516 1625 174 M30x220 46
1500
60		 1524 <10 1644 1780 169 M27x180 41

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
