It is a differentiated product from the existing Grooved joint method, and it is a Grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.
- One-stop Grooved joint Flexible type
- Joint material: Spherical graphite cast iron (GCD450)
- Gasket material: EPDM
- Bolt/nut material: Carbon steel for mechanical structure
- Painting: Epoxy powder painting
It is a differentiated product from the existing grooved joint method, and it is a grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

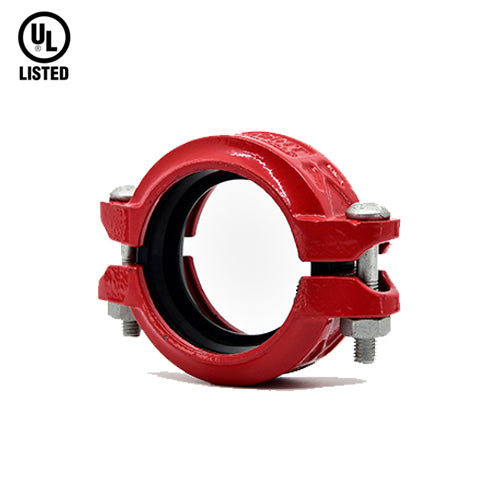

The Model AJ550F is a ready to install Flexible coupling for general piping applications where rigidity is required, including valve connections, mechanical rooms, risers, and long straight runs.
AJ550 F couplings should always be installed so that the coupling bolt pads make metal to metal contact.
Material specification
- Housing: Ductile Iron to ASTM A536, Gr. 65-45-12
- Surface Finish: Epoxy Coating
- Rubber Gasket: Grade EPDM approved under NSF/ANSI 61.
- Bolts & Nut: CS for machine structural use.
[ Product specification ]
| Nominal Size (DN) |
Pipe O.D. (mm) |
Max.Working Pressure (kgf/cm2) |
Max.End Load (kN) |
Allow.Pipe End Sep (mm) |
Degrees-per Joint | Pipe Deflection (mm/6m) |

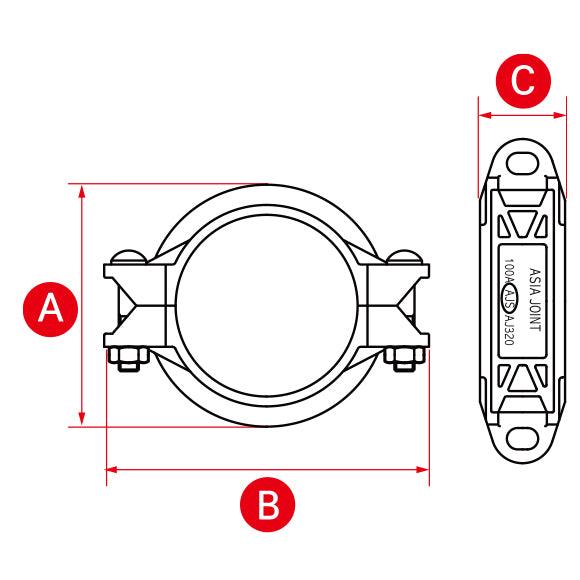

Dimensions (mm) |
Bolt Size (ΦxL) | Wrench Size(mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||||||
| 50 | 60.5 | 30 | 6.9 | 1.6 | 1.51˚ | 158.2 | 87 | 134 | 47 | M10 X 60 | 17 | 0.96 |
| 65 | 76.3 | 30 | 11.0 | 1.6 | 1.20˚ | 125.7 | 103 | 151 | 47 | M10 X 65 | 17 | 0.92 |
| 80 | 89.1 | 30 | 15.0 | 1.6 | 1.03˚ | 107.9 | 117 | 165 | 47 | M10 X 65 | 17 | 1.37 |
| 100 | 114.3 | 30 | 24.6 | 3.2 | 1.60˚ | 167.6 | 143 | 198 | 50 | M12 X 75 | 19 | 1.74 |
| 125 | 139.8 | 30 | 32.2 | 3.2 | 1.31˚ | 137.2 | 169 | 225 | 50 | M12 X 75 | 19 | 2.11 |
| 150 | 165.2 | 26 | 45.0 | 3.2 | 1.11˚ | 116.3 | 200 | 260 | 50 | M12 X 80 | 19 | 2.32 |
| 200 | 216.3 | 26 | 77.2 | 3.2 | 1.83˚ | 191.7 | 255 | 330 | 62 | M16 X 85 | 24 | 4.14 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
[General note]
*Maximum Working Pressure (CWP) listed is the maximum cold water pressure for general piping services tested to UL213.
*Please always refer to the latest approval data posted on the NEWASIA website.
*Warning: Piping systems must always be depressurized and drained before attempting disassembly and or removal of any components.
*The 2 Year Limited Warranty applies to manufacturing defects only and does not cover severe service/temperature applications or wear parts.
*NEWASIA reserves the right to change specifications, designs and or standard without notice and without incurring any obligations.
