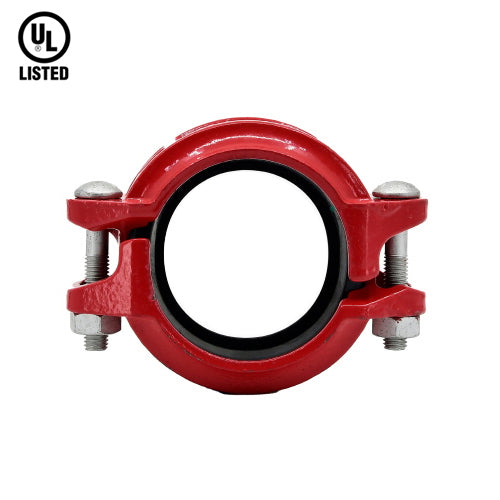

AJ550R

It is a differentiated product from the existing Grooved joint method, and it is a Grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

  • One-stop Grooved joint Rigid type
  • Joint material: Spherical graphite cast iron (GCD450)
  • Gasket material: EPDM
  • Bolt/nut material: Carbon steel for mechanical structure
  • Painting: Epoxy powder painting

It is a differentiated product from the existing Grooved joint method, and it is a Grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

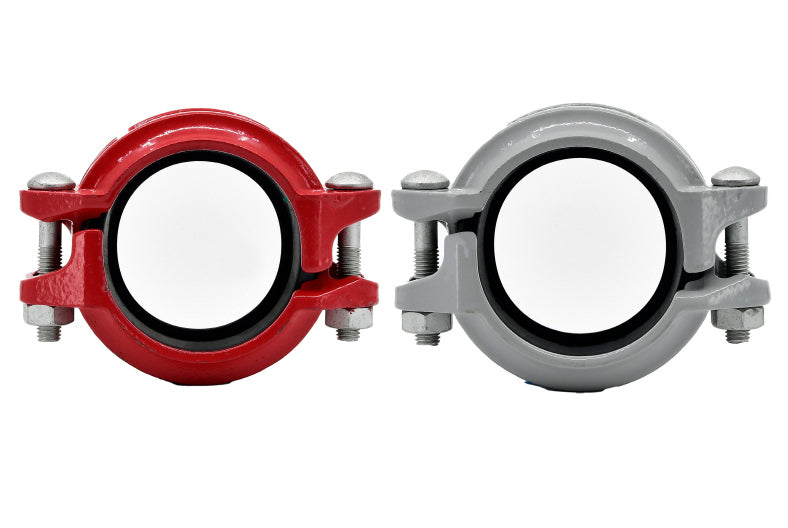

The Model AJ550R is a ready to install rigid coupling for general piping applications where rigidity is required, including valve connections, mechanical rooms, risers, and long straight runs.

AJ550R couplings should always be installed so that the coupling bolt pads make metal to metal contact.




Material specification

  • Housing: Ductile Iron to ASTM A536, Gr. 65-45-12
  • Surface Finish: Epoxy Coating
  • Rubber Gasket: Grade EPDM approved under NSF/ANSI 61.
  • Bolts & Nut: CS for machine structural use.


[ Product specification ]

Nominal
Size
(DN)
Pipe O.D.
(mm)
Max.
Working
Pressure
(kgf/cm2)
Max.End Load
(kN)
Allow. Pipe
End Sep
(mm)

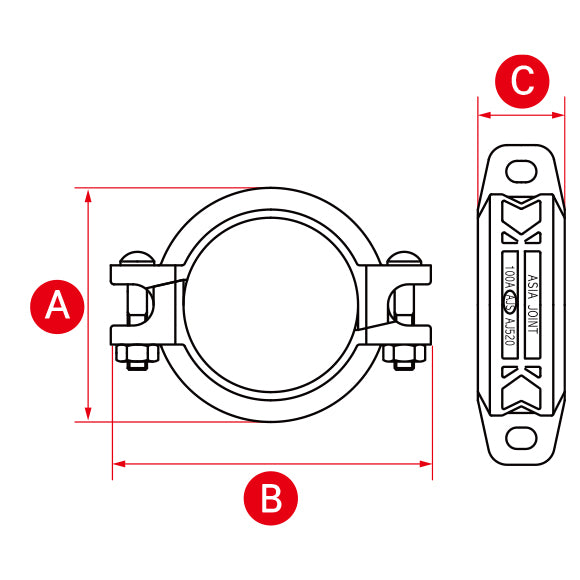

Dimensions
(mm)
Bolt Size
(ΦxL)
Wrench Size
(mm)
Weight
(kg)
A B C
50 60.5 30 6.9 1.6 87 134 47 M10 X 60 17 0.96
65 76.3 30 11.0 1.6 103 151 47 M10 X 65 17 1.09
80 89.1 30 15.0 1.6 117 165 47 M10 X 65 17 1.37
100 114.3 30 24.6 2.9 143 198 50 M12 X 75 19 1.74
125 139.8 30 32.2 2.9 169 225 50 M12 X 75 19 2.16
150 165.2 26 45.0 2.9 200 260 50 M12 X 80 19 2.41
200 216.3 26 77.2 3.2 255 330 62 M16 X 85 24 4.15

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
