It is a differentiated product from the existing Grooved joint method, and it is a grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.
- industrial standard: ANSI
- One-stop Grooved joint Flexible type
- Joint material: Spherical graphite cast iron(ASTM A536, GCD450)
- Gasket Material: EPDM
- Bolt/nut material: Carbon steel for mechanical structures
- Painting: Epoxy Powder Painting
It is a differentiated product from the existing grooved joint method, and it is a grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

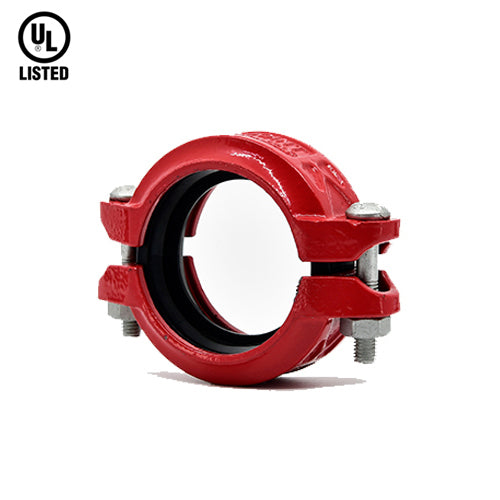

The Model AJ560F is a ready to install Flexible coupling for general piping applications where rigidity is required, including valve connections, mechanical rooms, risers, and long straight runs.
AJ560F couplings should always be installed so that the coupling bolt pads make metal to metal contact.
Material specification
- Housing: Ductile Iron to ASTM A536, Gr. 65-45-12
- Surface Finish: Epoxy Coating
- Rubber Gasket: Grade EPDM approved under NSF/ANSI 61.
- Bolts & Nut: CS for machine structural use.
[ Product specification ]
| Nominal Size (inch) |
Pipe O.D. (mm) |
Max.Working Pressure (kgf/ cm2) |
Max.End Load (kN) |
Allow. Pipe End Sep (mm) |
Degrees-per Joint | Pipe De-flection (mm/6m) |

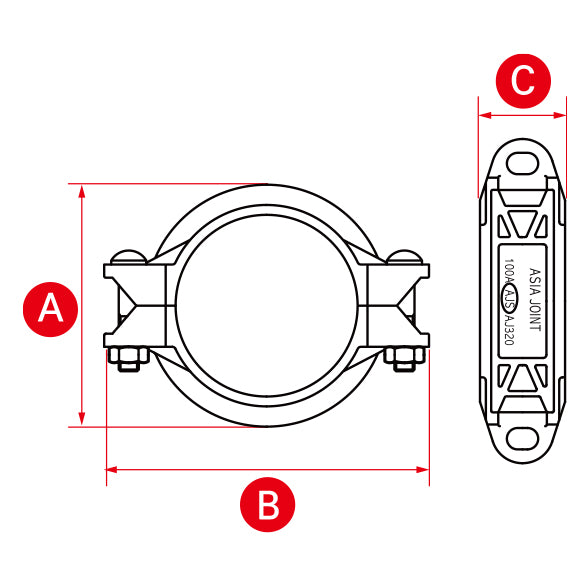

Dimensions (mm) |
Bolt Size (ΦxL) | Wrench Size (mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||||||
| 2 | 60.3 | 30 | 6.9 | 1.6 | 1.51˚ | 158.2 | 87 | 134 | 47 | M10 X 60 | 17 | 0.94 |
| 2.1/2 | 73.0 | 30 | 11.0 | 1.6 | 1.20˚ | 125.7 | 96 | 140 | 45 | M10 X 60 | 17 | 0.92 |
| 3 | 88.9 | 30 | 15.0 | 1.6 | 1.03˚ | 107.9 | 117 | 165 | 47 | M10 X 65 | 17 | 1.37 |
| 4 | 114.3 | 30 | 24.6 | 3.2 | 1.60˚ | 167.6 | 143 | 198 | 50 | M12 X 75 | 19 | 1.77 |
| 5 | 141.3 | 30 | 32.2 | 3.2 | 1.31˚ | 137.2 | 170 | 227 | 50 | M12 X 75 | 19 | 2.11 |
| 6 | 168.3 | 26 | 45.0 | 3.2 | 1.11˚ | 116.3 | 196 | 250 | 50 | M12 X 80 | 19 | 2.32 |
| 8 | 219.1 | 26 | 77.2 | 3.2 | 1.83˚ | 191.7 | 255 | 327 | 60 | M16 X 90 | 24 | 4.14 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
[General note]
*Maximum Working Pressure (CWP) listed is the maximum cold water pressure for general piping services tested to UL213.
*Please always refer to the latest approval data posted on the NEWASIA website.
*Warning: Piping systems must always be depressurized and drained before attempting disassembly and or removal of any components.
*The 2 Year Limited Warranty applies to manufacturing defects only and does not cover severe service/temperature applications or wear parts.
*NEWASIA reserves the right to change specifications, designs and or standard without notice and without incurring any obligations.
