AJ560R
AJ560R

AJ560R

It is a differentiated product from the existing Grooved joint method, and it is a Grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

  • Industrial standard: ANSI
  • One-stop Grooved joint Rigid type
  • Joint material: Spherical graphite cast iron (ASTM A536, GCD450)
  • Gasket material: EPDM
  • Bolt/nut material: Carbon steel for mechanical structure
  • Painting: Epoxy powder painting

Product specification

It is a differentiated product from the existing grooved joint method, and it is a grooved joint in which pipes and fittings can be easily fastened without breaking down bolts/nuts and rubber rings.

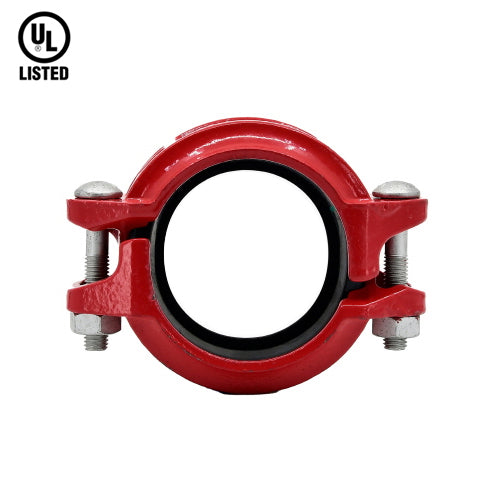

The Model AJ560R is a ready to install rigid coupling for general piping applications where rigidity is required, including valve connections, mechanical rooms, risers, and long straight runs.

AJ560R couplings should always be installed so that the coupling bolt pads make metal to metal contact.



[ Product specification ]

Nominal
Size
(Inch)		 Pipe O.D.
(mm)		 Max.Working
Pressure
(kgf/cm2)		 Max.End Load
(kN)		 Allow.
Pipe End Sep

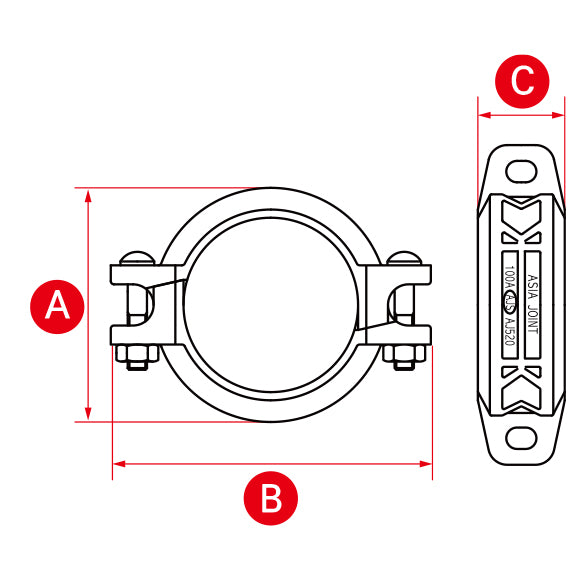

(mm)		 Dimensions
(mm)		 Bolt Size
(ΦxL)		 Wrench Size
(mm)		 Weight
(kg)
A B C
2 60.3 30 6.9 1.6 87 134 47 M10 X 60 17 0.96
2.1/2 73.0 30 11.0 1.6 96 140 45 M10 X 60 17 0.89
3 88.9 30 15.0 1.6 117 165 47 M10 X 65 17 1.37
4 114.3 30 24.6 2.9 143 198 50 M12 X 75 19 1.74
5 141.3 30 32.2 2.9 170 227 50 M12 X 75 19 2.03
6 168.3 26 45.0 2.9 196 250 50 M12 X 80 19 2.24
8 219.1 26 77.2 3.2 255 327 60 M16 X 90 24 4.04

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
