The grooved joint method is simpler and faster than welding in the field. To relieve the stress of the piping, change the orientation of the piping or use the joint to secure the piping.

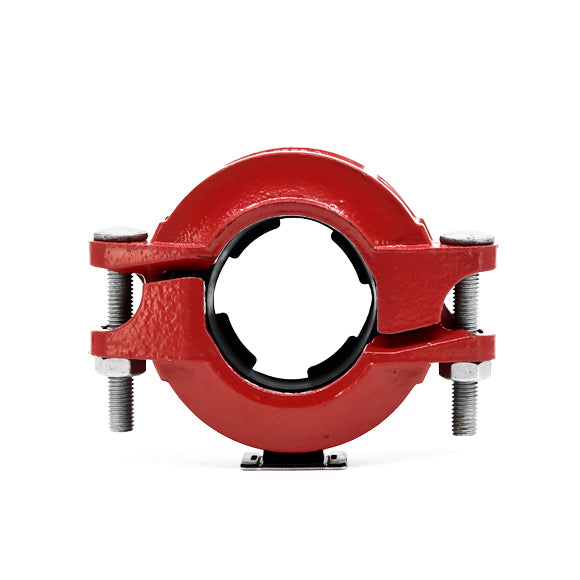

- One-stop Grooved joint Rigid type
- Specifications: 65x50(2-1/2x2), 50x40(2x1-1/2), 40x32(1-1/2x1-1/4), 32x25(1-1/4x1)
- Joint material: Spherical graphite cast iron(ASTM A536, GCD450)
- Gasket Material: EPDM
- Bolt/nut material: Carbon steel for mechanical structures
- Painting: Epoxy Powder Painting
The grooved joint method is simpler and faster than welding in the field.
To relieve the stress of the piping, change the orientation of the piping or use the joint to secure the piping.
[ Product specification ]
| Nominal Size DN Inch |
Pipe O.D. (mm) | Max.Working Pressure (kgf/cm2) |
Dimensions (mm) |
Bolt/Nut (Ф X L) |
Wrench Size (mm) |
||
|---|---|---|---|---|---|---|---|

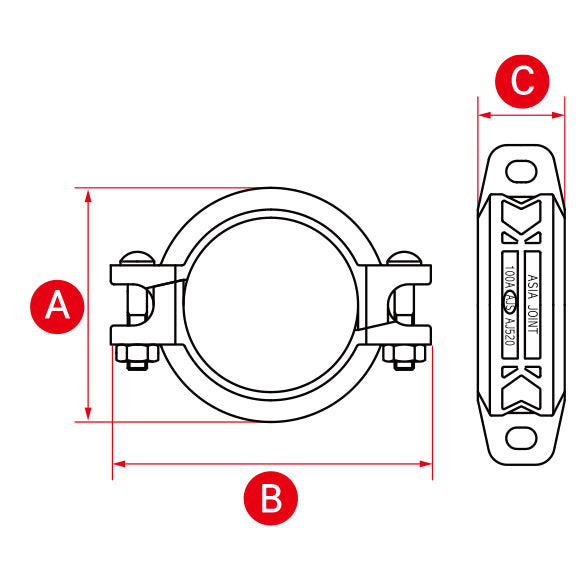

| A | B | C | |||||
| 32x25 1.1/4x1 |
42.7x34.0 | 21 | 66 | 104.5 | 46 | M10 X 55 | 17 |
| 40x32 1.1/2x1.1/4 |
48.6x42.7 | 21 | 71 | 111.6 | 46 | M10 X 55 | 17 |
| 50x40 2x1.1/2 |
60.5x48.6 | 21 | 87 | 125 | 46 | M10 X 55 | 17 |
| 65x50 | 76.3x60.5 | 21 | 101 | 145.2 | 46 | M10 X 65 | 17 |
| 2.1/2x2 | 73.0x60.3 | 21 | 98 | 145.2 | 46 | M10 X 65 | 17 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
