AJS510R

The Grooved joint method is simpler and faster than welding in the field.
To alleviate the stress of the pipe, use a combination of fixed and flowable joints as shown in the figure to change the direction of the pipe or to secure the pipe.

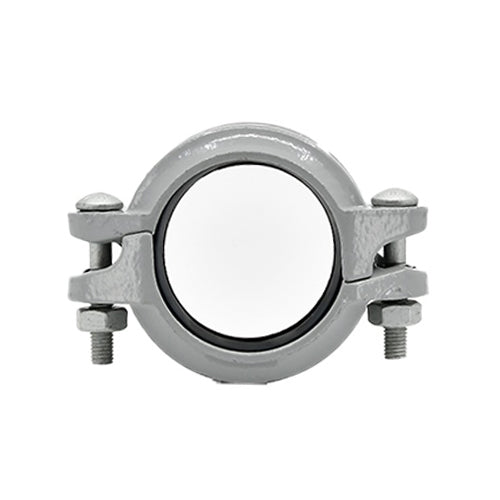

Grooved joint Rigid type
Joint material: Spherical graphite cast iron (ASTM A536, GCD450)
Gasket material: EPDM
Bolt/nut material: Carbon steel for mechanical structure
Painting: Epoxy powder painting

Product specification
Video
Data Download

The grooved joint method is simpler and faster than welding in the field.
To alleviate the stress of the pipe, use a combination of fixed and flowable joints as shown in the figure to change the direction of the pipe or to secure the pipe.

[ Product specification ]

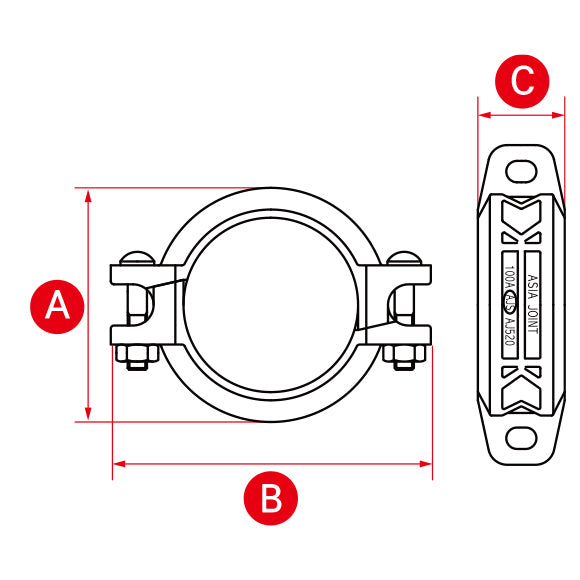

Nominal Size DN inch	Pipe O.D. (mm)	Max.Working Pressure (kgf/cm2)	Max.End Load (kN)	Allow. Pipe End Sep (mm)	Dimensions (mm)			Bolt Size (ΦxL)	Wrench Size (mm)	Weight (kg)
Nominal Size DN inch	Pipe O.D. (mm)	Max.Working Pressure (kgf/cm2)	Max.End Load (kN)	Allow. Pipe End Sep (mm)	A	B	C	Bolt Size (ΦxL)	Wrench Size (mm)	Weight (kg)
25 1	33.7	21	2.1	1.2	58	97	45.5	M10 X 45	17	0.6
32 1.1/4	42.4	21	3.4	1.2	66	108	45.5	M10 X 55	17	0.64
40 1.1/2	48.3	21	4.4	1.2	74	114	45.5	M10 X 55	17	0.66
50 2	60.3	21	6.9	1.6	85	128	45.5	M10 X 55	17	0.72
65	76.1	21	11.0	1.6	98	144	45.5	M10 X 55	17	0.86
2.1/2	73	21	11.0	1.6	98	144	45.5	M10 X 55	17	0.86
80 3	88.9	21	15.0	1.6	112	164	46	M12 X 65	17	1.08
100 4	114.3	21	24.6	2.9	138	192	50	M12 X 75	19	1.26
125	139.7	21	32.2	2.9	168	223	50	M12 X 75	19	1.86
5	141.3	21	32.2	2.9	168	223	50	M12 X 75	19	1.86
150	165.1	21	45.0	2.9	194	247	50	M12 X 80	19	2.20
6	168.3	21	45.0	2.9	194	247	50	M12 X 80	19	2.20
200	216.3	21	77.2	3.2	256	320	60	M16 X 90	24	4.40
8	219.1	21	77.2	3.2	256	320	60	M16 X 90	24	4.40
250	267.4	21	110.0	4.5	316	408	65	M20 X 120	30	6.50
10	273.0	21	110.0	4.5	316	408	65	M20 X 120	30	6.50
300	318.5	21	156.0	4.5	372	460	65	M22 X 140	30	8.00
12	323.9	21	156.0	4.5	372	460	65	M22 X 140	30	8.00
