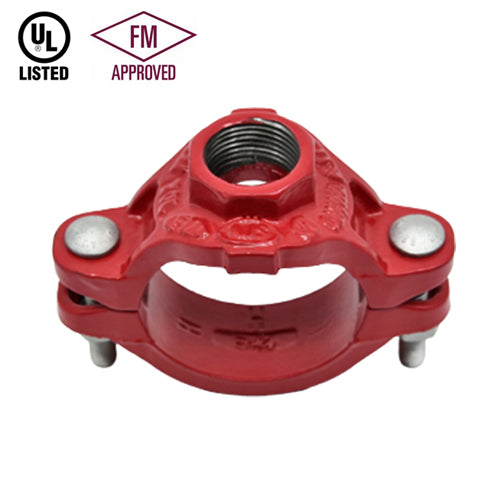

AJS710T

The screw type tee joint is a product that can be drilled into a pipe and branched directly into a screw type and joined directly to the screw product.

  • Industrial standard: KS, JIS, ANSI
  • Threaded Outlet type
  • Joint material: Spherical graphite cast iron(ASTM A536, GCD450)
  • Gasket Material: EPDM
  • Bolt/nut material: Carbon steel for mechanical structures
  • Painting: Epoxy Powder Painting

The Grooved joint method is simpler and faster than welding in the field.
To alleviate the stress of the pipe, use a combination of fixed and flowable joints as shown in the figure to change the direction of the pipe or to secure the pipe.

The Model AJS710T Outlet Coupling combines the features of a coupling and a reducing outlet. The AJS710T is a joining device with an integral reducing outlet, eliminating the need for a mechanical tee or a reducing tee and couplings. The AJS710T 1s available with grooved, male threaded or female threaded outlets. The AJS710T coupling is recommended for fire sprinkler services and other applications up to 300 psi (20 Bar) depending on the size and schedule of pipe being used. All Model AJS710T couplings are comprised of an upper and lower ductile iron housings segment, EPDM rubber gasket and plated track bolts & nuts.

AJS710T couplings should always be installed so that the coupling bolt pads make metal to metal contact.


Material specification

  • Housing: Ductile Iron to ASTM A536, Gr. 65-45-12, min. tensile strength 65,000 psi (448 MPa).
  • Surface Finish: Epoxy Coating
  • Rubber Gasket: Grade EPDM approved under NSF/ANSI 61.
  • Bolts & Nut: CS for machine structural use.

[ Product specification ]

Nominal
Size
(A)
Pipe O.D
(mm)
Max. Working
Pressure
(kgf/cm2)

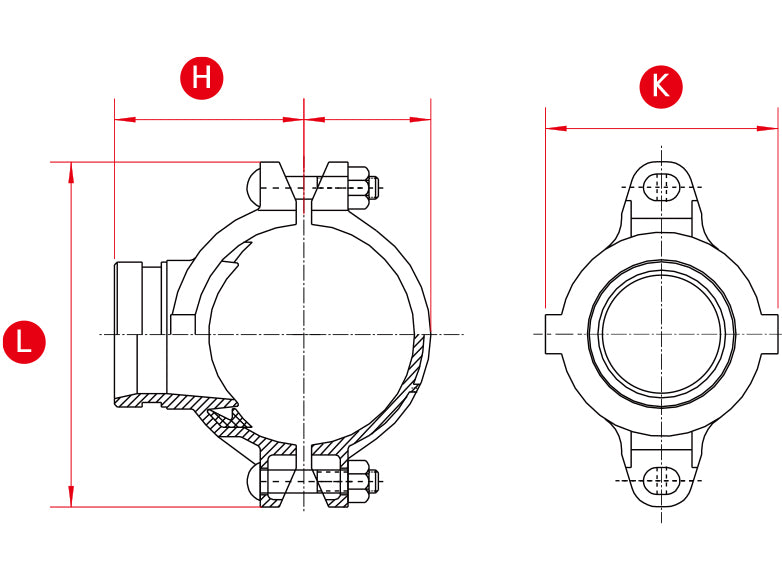

Dimensions
(mm)
Bolt Size
(ф x L)
Wrench Size
(mm)
Hole Dia
(mm)
L K H
50A 25A 60.3x33.7 21 116 72 58 M10x55 15 38
65A 25A 76.1x33.7 21 128 83 68 M10x60 15 38
32A 76.1x42.4 21 128 83 76 M10x60 15 51
40A 76.1x48.3 21 128 86 76 M10x60 15 51
80A 25A 88.9x33.7 21 151 74 78 M12x65 19 38
32A 88.9x42.4 21 151 86 78 M12x65 19 51
40A 88.9x48.3 21 151 86 78 M12x65 19 51
50A 88.9x60.3 21 151 101 78 M12x65 19 64
100A 25A 114.3x33.7 21 183 76 88 M12x75 19 38
32A 114.3x42.4 21 183 89 94 M12x75 19 51
40A 114.3x48.3 21 183 89 94 M12x75 19 51
50A 114.3x60.3 21 183 105 98 M12x75 19 64
65A 114.3x76.1 21 183 110 100 M12x75 19 70
125A 25A 139.7x33.7 21 219 80 103 M16x80 24 38
32A 139.7x42.4 21 219 93 103 M16x80 24 51
40A 139.7x48.3 21 219 93 103 M16x80 24 51
50A 139.7x60.3 21 219 105 107 M16x80 24 64
65A 139.7x76.1 21 209 112 107 M16x80 24 70
150A 25A 165.1x33.7 21 245 75 115 M16x90 24 38
32A 165.1x42.4 21 245 93 115 M16x90 24 51
40A 165.1x48.3 21 245 93 115 M16x90 24 51
50A 165.1x60.3 21 245 107 115 M16x90 24 64
65A 165.1x76.1 21 245 115 125 M16x90 24 70


Nominal
Size
(A)
Pipe O.D
(mm)
Max. Working
Pressure
(kgf/cm2)
Dimensions
(mm)
Bolt Size
(ф x L)
Wrench Size
(mm)
Hole Dia
(mm)
L K H
2" 1" 60.3x33.7 21 116 72 58 M10x55 15 38
1-1/4" 60.3x42.4 21 116 75 63 M10x55 15 45
1-1/2" 60.3x48.3 21 116 75 68 M10x55 15 45
2-1/2" 1" 73.0x33.7 21 128 83 68 M10x60 15 38
1-1/4" 73.0x42.4 21 128 83 76 M10x60 15 51
1-1/2" 73.0x48.3 21 128 83 76 M10x60 15 51
3" 1" 88.9x33.7 21 151 74 78 M12x65 19 38
1-1/4" 88.9x42.4 21 151 86 78 M12x65 19 51
1-1/2" 88.9x48.3 21 151 86 78 M12x65 19 51
2" 88.9x60.3 21 151 101 78 M12x65 19 64
4" 1" 114.3x33.7 21 183 76 88 M12x75 19 38
1-1/4" 114.3x42.4 21 183 89 94 M12x75 19 51
1-1/2" 114.3x48.3 21 183 89 94 M12x75 19 51
2" 114.3x60.3 21 183 105 98 M12x75 19 64
2-1/2" 114.3x73.0 21 183 110 100 M12x75 19 70
3" 114.3x88.9 21 183 124 100 M12x75 19 89
5" 1" 141.3x33.7 21 219 80 103 M16x80 24 38
1-1/4" 141.3x42.4 21 219 93 103 M16x80 24 51
1-1/2" 141.3x48.3 21 219 93 103 M16x80 24 51
2" 141.3x60.3 21 219 105 107 M16x80 24 64
3" 141.3x88.9 21 219 130 112 M16x80 24 89
6" 1" 168.3x33.7 21 250 75 115 M16x90 24 38
1-1/4" 168.3x42.4 21 250 93 115 M16x90 24 51
1-1/2" 168.3x48.3 21 250 93 115 M16x90 24 51
2" 168.3x60.3 21 250 107 115 M16x90 24 64
2-1/2" 168.3x73.0 21 250 115 125 M16x90 24 70
3" 168.3x88.9 21 250 128 130 M16x90 24 89

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.

[General note]
*Maximum Working Pressure (CWP) listed is the maximum cold water pressure for general piping services tested to UL213.
*Please always refer to the latest approval data posted on the NEWASIA website.
*Warning: Piping systems must always be depressurized and drained before attempting disassembly and or removal of any components.
*The 2 Year Limited Warranty applies to manufacturing defects only and does not cover severe service/temperature applications or wear parts.
*NEWASIA reserves the right to change specifications, designs and or standard without notice and without incurring any obligations.
