SPP/SGP
7.9T, STD, X-S
Sch40, Sch80, Sch160

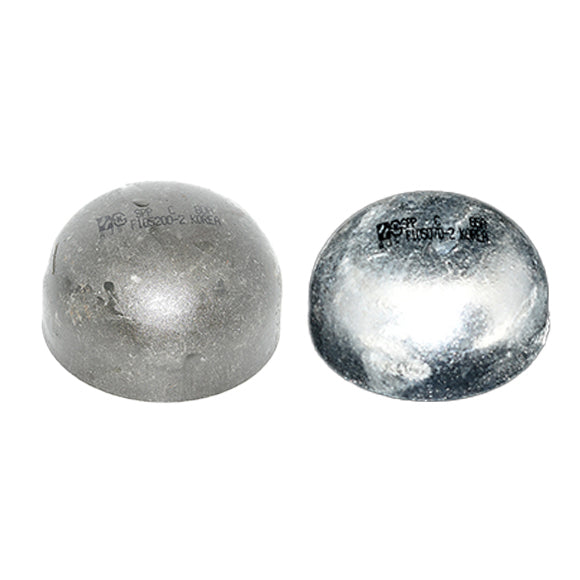

It is a steel pipe piping material product for welding.
- KS B 1543 / JIS B 2312 / JIS B 2313
- Material: Carbon Steel Pipe (A234 WPB, SPP, SPPS250)
- Black Reducer / White Reducer
It is a steel pipe piping material product for welding.

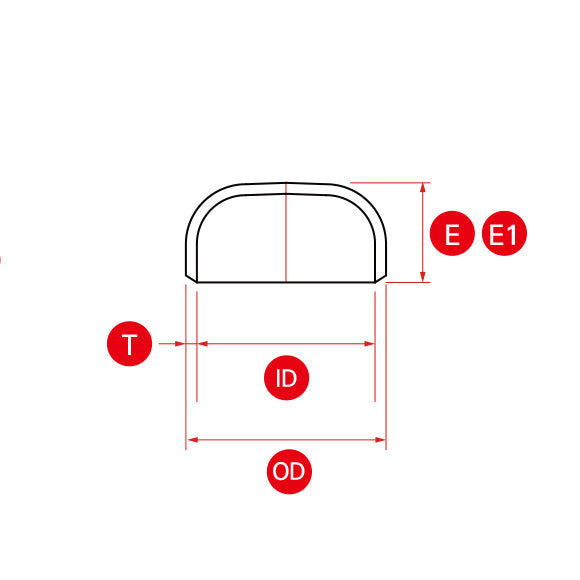

[ Sch40, Sch80, Sch120, Sch160 Product specification ]
KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)
| Nominal Pipe Size |
Outside Diameter OD |
Wall Thickness T | Cap | |||||
|---|---|---|---|---|---|---|---|---|
| Sch 40 | Sch 80 | Sch 120 | Sch 160 | E | E1 | Limited Wall Thickness Fore | ||
| 15 | 21.7 | 2.8 | 3.7 | - | - | 25.4 | - | - |
| 20 | 27.2 | 2.9 | 3.9 | - | - | 25.4 | - | - |
| 25 | 34.0 | 3.4 | 4.5 | - | - | 38.1 | - | - |
| 32 | 42.7 | 3.6 | 4.9 | - | - | 38.1 | - | - |
| 40 | 48.6 | 3.7 | 5.1 | - | 7.1 | 38.1 | - | - |
| 50 | 60.5 | 3.9 | 5.5 | - | 8.7 | 38.1 | 44.5 | 5.5 |
| 65 | 76.3 | 5.2 | 7.0 | - | 9.5 | 38.1 | 50.8 | 7.0 |
| 80 | 89.1 | 5.5 | 7.6 | - | 11.1 | 50.8 | 63.5 | 7.6 |
| 90 | 101.6 | 5.7 | 8.1 | - | 12.7 | 63.5 | 76.2 | 8.1 |
| 100 | 114.3 | 6.0 | 8.6 | 11.1 | 13.5 | 63.5 | 76.2 | 8.6 |
| 125 | 139.8 | 6.6 | 9.5 | 12.7 | 15.9 | 76.2 | 88.9 | 9.5 |
| 150 | 165.2 | 7.1 | 11.0 | 14.3 | 18.2 | 88.9 | 101.6 | 11.0 |
| 200 | 216.3 | 8.2 | 12.7 | 18.2 | 23.0 | 101.6 | 127.0 | 12.7 |
| 250 | 267.4 | 9.3 | 15.1 | 21.4 | 28.6 | 127.0 | 152.4 | 12.7 |
| 300 | 318.5 | 10.3 | 17.4 | 25.4 | 33.3 | 152.4 | 177.8 | 12.7 |
| 350 | 355.6 | 11.1 | 19.0 | 27.8 | 35.7 | 165.1 | 190.5 | 12.7 |
| 400 | 406.4 | 12.7 | 21.4 | 30.9 | 40.5 | 177.8 | 203.2 | 12.7 |
| 450 | 457.2 | 14.3 | 23.8 | 34.9 | 45.2 | 203.2 | 228.6 | 12.7 |
| 500 | 508.0 | 15.1 | 26.2 | 38.1 | 50.0 | 228.6 | 254.0 | 12.7 |
[ SPP / SGP Product specification ]
KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)
| Nominal Pipe Size | Outside Diameter OD |
Inside Diameter ID |
Wall Thickness T |
Cap |
|---|---|---|---|---|
| E | ||||
| 15 | 21.7 | 16.1 | 2.8 | - |
| 20 | 27.2 | 21.6 | 2.8 | - |
| 25 | 34.0 | 27.6 | 3.2 | 38.1 |
| 32 | 42.7 | 35.7 | 3.5 | 38.1 |
| 40 | 48.6 | 41.6 | 3.5 | 38.1 |
| 50 | 60.5 | 52.9 | 3.8 | 38.1 |
| 65 | 76.3 | 67.9 | 4.2 | 38.1 |
| 80 | 89.1 | 80.7 | 4.2 | 50.8 |
| 90 | 101.6 | 93.2 | 4.2 | 63.5 |
| 100 | 114.3 | 105.3 | 4.5 | 63.5 |
| 125 | 139.8 | 130.8 | 4.5 | 76.2 |
| 150 | 165.2 | 155.2 | 5.0 | 88.9 |
| 200 | 216.3 | 204.7 | 5.8 | 101.6 |
| 250 | 267.4 | 254.2 | 6.6 | 127.0 |
| 300 | 318.5 | 304.7 | 6.9 | 152.4 |
| 350 | 355.6 | 339.8 | 7.9 | 165.1 |
| 400 | 406.4 | 390.6 | 7.9 | 177.8 |
| 450 | 457.2 | 441.4 | 7.9 | 203.2 |
| 500 | 508.0 | 492.2 | 7.9 | 228.6 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
