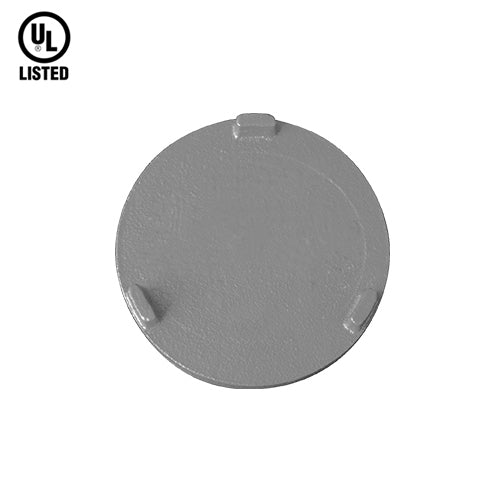

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- Model Name: XGQT06
- Material: Spherical graphite cast iron(GCD450)
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability

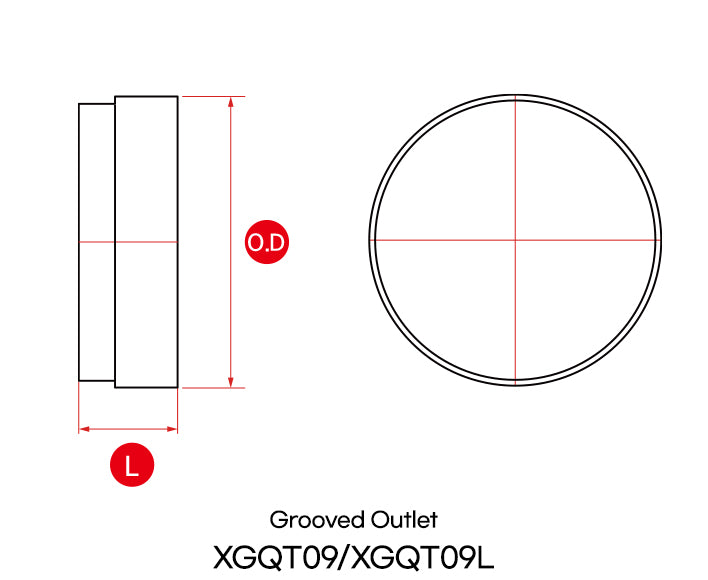

[ Product specification ]
| Nominal Size DN Inch |
Pipe O.D. (mm) |
Max.Working Pressure (kgf/cm2) |
Dimensions (mm) / Length L |
|---|---|---|---|
| 50 2 |
60.3 | 21 | 24 |
| 65 | 76.1 | 21 | 24 |
| 2.1/2 | 73.0 | 21 | 24 |
| 80 3 |
88.9 | 21 | 24 |
| 100 4 |
114.3 | 21 | 26 |
| 125 | 139.7 | 21 | 26 |
| 5 | 141.3 | 21 | 26 |
| 150 | 165.1 | 21 | 26 |
| 6 | 168.3 | 21 | 26 |
| 200 | 216.3 | 21 | 28 |
| 8 | 219.1 | 21 | 28 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
