Ductile Elbow

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

Grooved Pipe Fitting(Ductile) - Elbow

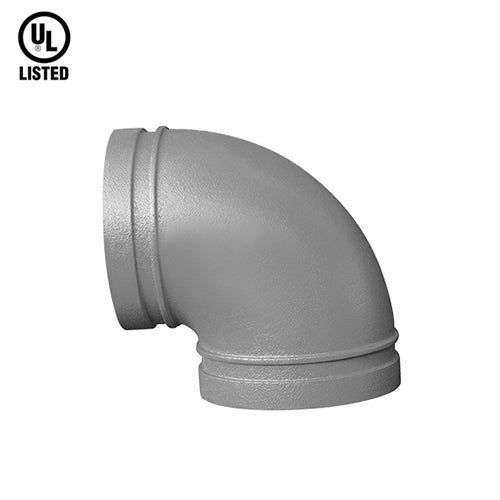

90/45˚ Grooved Outlet (Model Name: XGQT01/XGQT02)

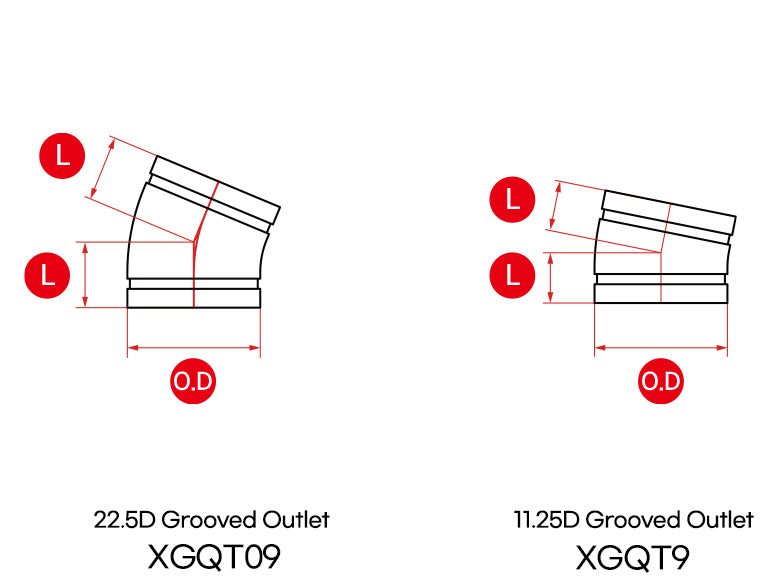

22.5/11.25˚ Grooved Outlet ( Model Name: XGQT09/XGQT9)
Material: Spherical graphite cast iron(GCD450)

Product specification
Video
Data Download

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

[ Product specification ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max.Working Pressure (kgf/cm2)	Dimensions(mm)/Length L
			90 degrees	45 degrees	22.5 degrees	11.25 degrees
			XGQT01	XGQT02	XGQT09	XGQT9
25 1	33.7	21	57
32 1.1/4	42.4	21	60
40 1.1/2	48.3	21	60
50 2	60.3	21	70	51	48	35
65	76.1	21	76	57	51	38
2.1/2	73.0	21	76	57	51	38
80 3	88.9	21	86	64	57	38
100 4	114.3	21	102	76	73	45
125	139.7	21	122	83	73	51
5	141.3	21	122	83	73	51
150	165.1	21	140	89	79	51
6	168.3	21	140	89	79	51
200	216.3	21	175	108
8	219.1	21	175	108
