It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- Model name: XGQT08
- Material: Spherical graphite cast iron(GCD450)
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability

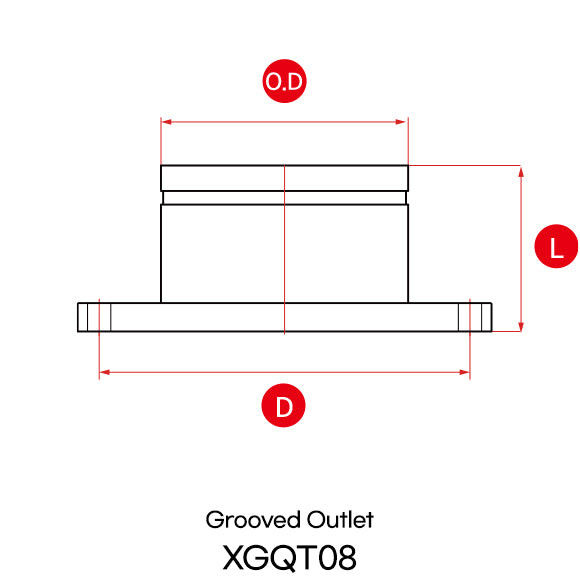

[ Product specification ]
| Nominal Size DN Inch |
Pipe O.D. (mm) |
Dimensions (mm) / Length (L) | 10K (810K) |
|
|---|---|---|---|---|
| Diameter(D) | Bolt | |||
| 50 2 |
60.3 | 65 | 120 | 4-5/8 |
| 65 | 76.1 | 65 | 140 | 4-5/8 |
| 2-1/2 | 73.0 | 65 | 140 | 4-5/8 |
| 80 3 |
88.9 | 65 | 150 | 8-5/8 |
| 100 4 |
114.3 | 70 | 175 | 8-5/8 |
| 125 | 139.7 | 70 | 210 | 8-5/8 |
| 5 | 141.3 | 70 | 210 | 8-5/8 |
| 150 | 165.1 | 70 | 240 | 8-3/4 |
| 6 | 168.3 | 70 | 240 | 8-3/4 |
| 200 | 216.3 | 80 | 290 | 12-7/8 |
| 8 | 219.1 | 80 | 290 | 8-3/4 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
