Ductile Reducer

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

Grooved Outlet / Threaded Outlet
Model Name: XGQT5 / XGQT5S (Concentric Reducer)
Model Name: XGQT05 (Eccentric Reducer)
Material: Spherical graphite cast iron(GCD450)

Product specification
Video
Data Download

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

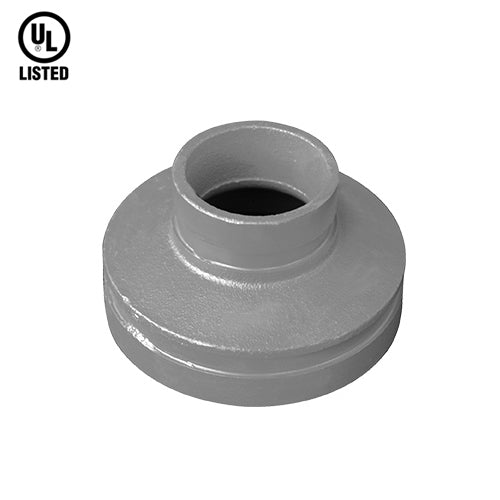

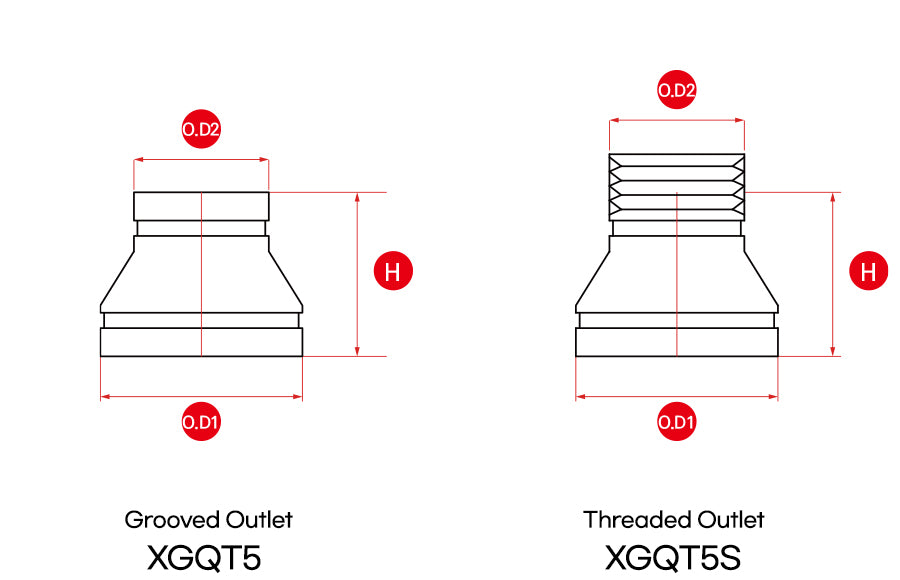

[ Ductile Concentric Reducer - XGQT5 (Grooved Outlet) ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max. Working Pressure (kgf/cm2)	Dimensions(mm) / Length(L)
			Grooved Type
			XGQT5
65x50	76.1x60.3	21	64
2.1/2x2	73.0x60.3	21	64
80x50 3x2	88.9x60.3	21	64
80x65	88.9x76.1	21	64
3x2.1/2	88.9x73.0	21	64
100x50 4x2	114.3x60.3	21	76
100x65	114.3x76.1	21	76
4x2.1/2	114.3x73.0	21	76
100x80 4x3	114.3x88.9	21	76
125x65	139.7x76.1	21	89
5x2.1/2	141.3x73.0	21	89
125x80	139.7x88.9	21	89
5x3	141.3x88.9	21	89
125x100	139.7x114.3	21	89
5x4	141.3x114.3	21	89
150x65	165.1x76.1	21	102
6x2.1/2	168.3x73.0	21	102
150x80	165.1x88.9	21	102
6x3	168.3x88.9	21	102
150x100	165.1x114.3	21	102
6x4	168.3x114.3	21	102
150x125	165.1x139.7	21	102
6x5	168.3x141.3	21	102

[ Ductile Concentric Reducer - XGQT5S (Threaded Outlet) ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max. Working Pressure (kgf/cm2)	치수 Dimensions(mm) / Length(L)
			Threaded Outlet
			XGQT5S
50x25 2x1	60.3x33.7	21	64
50x32 2x1.1/4	60.3x42.4	21	64
50x40 2x1.1/2	60.3x48.3	21	64
65x25	76.1x33.7	21	64
2.1/2x1	73.0x33.7	21	64
65x32	76.1x42.4	21	64
2.1/2x1.1/4	73.0x42.4	21	64
65x40	76.1x48.3	21	64
2.1/2x1.1/2	73.0x48.3	21	64
65x50	76.1x60.3	21	64
2.1/2x2	73.0x60.3	21	64
80x25 3x1	88.9x33.7	21	64
80x32 3x1.1/4	88.9x42.4	21	64
80x40 3x1.1/2	88.9x48.3	21	64
80x50 3x2	88.9x60.3	21	64
100x25 4x1	114.3x33.7	21	76
100x32 4x1.1/4	114.3x42.4	21	76
100x40 4x1.1/2	114.3x48.6	21	76
100x50 4x2	114.3x60.3	21	76
125x25	139.7x33.7	21	89
5x1	141.3x33.7	21	89
125x32	139.7x42.4	21	89
5x1.1/4	141.3x42.4	21	89
125x40	139.7x48.3	21	89
5x1.1/2	141.3x48.3	21	89
125x50	139.7x60.3	21	89
5x2	141.3x60.3	21	89
150x25	165.1x33.7	21	102
6x1	168.3x33.7	21	102
150x32	165.1x42.4	21	102
6x1.1/4	168.3x42.4	21	102
150x40	165.1x48.3	21	102
6x1.1/2	168.3x48.3	21	102
150x50	165.1x60.3	21	102
6x2	168.3x60.3	21	102

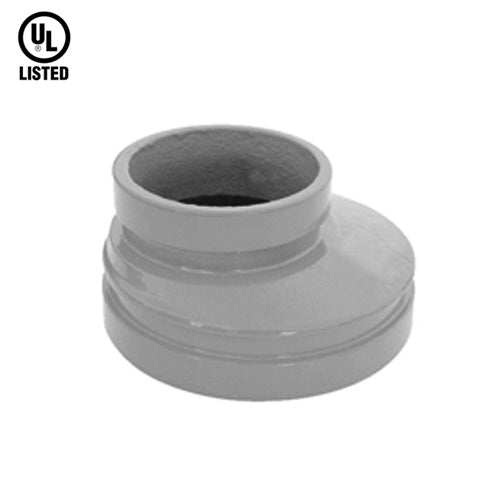

[ Ductile Grooved Eccentric Reducer - XGQT05 ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max. Working Pressure (kgf/cm2)	Dimensions(mm) / Length(L)
			Grooved Type
			XGQT05
80x50 3x2	88.9x60.3	21	64
100x65	114.3x76.1	21	76
4x2-1/2	114.3x73.0	21	76
100x8 4x3	114.3x88.9	21	76
125x100	139.7x114.3	21	89
5x4	141.3x114.3	21	89
150x65	165.1x76.1	21	102
6x2-1/2	168.3x73.0	21	102
150x80	165.1x88.9	21	102
6x3	168.3x88.9	21	102
150x100	165.1x114.3	21	102
6x4	168.3x114.3	21	102
150x125	165.1x139.7	21	102
6x5	168.3x141.3	21	102
