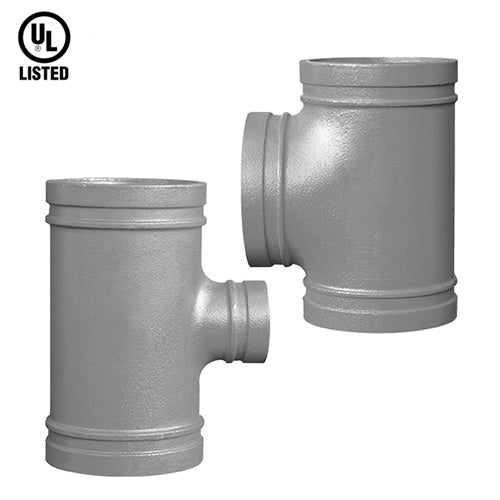

Ductile Tee

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

Grooved Pipe Fitting(Ductile) - Elbow

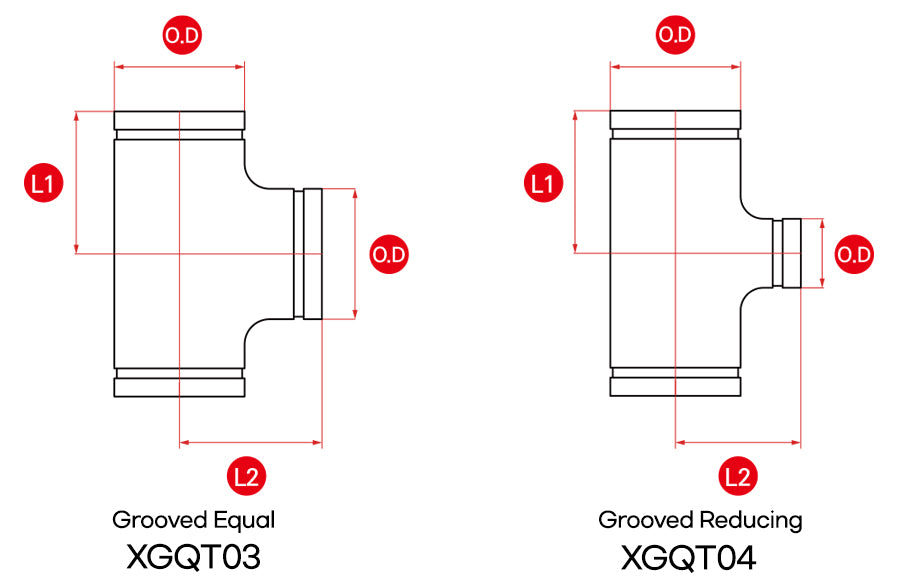

90/45˚ Grooved Outlet (Model Name: XGQT03 (Same hole) / XGQT04 (Double hole)
22.5/11.25˚ Grooved Outlet ( Model Name: XGQT04S (Threaded Reducing Tee)
Material: Spherical graphite cast iron(GCD450)

Product specification
Video
Data Download

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability

[ Product specification ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max.Working Pressure (kgf/cm2)	Dimensions (mm) / Length (L)
			Same hole	Double hole (XGQT04)
			XGQT03	L1	L2
50x50 2x2	60.3x60.3	21	70	-	-
65x50	76.1x60.3	21	-	76	76
2.1/2x2	73.0x60.3	21	-	76	76
65x65	76.1x76.1	21	76	-	-
2.1/2x2.1/2	73.0x73.0	21	76	-	-
80x50 3x2	88.9x60.3	21	-	86	86
80x65	88.9x76.1	21	-	86	86
3x2.1/2	88.9x73.0	21	-	86	86
80x80 3x3	88.9x88.9	21	86	-	-
100x50 4x2	114.3x60.3	21	-	102	102
100x65	114.3x76.1	21	-	102	102
4x2.1/2	114.3x73.0	21	-	102	102
100x80 4x3	114.3x88.9	21	-	102	102
100x100 4x4	114.3x114.3	21	102	-	-
125x50	139.7x60.3	21	-	122	122
5x2	141.3x60.3	21		122	122
125x80	139.7x88.9	21	-	122	122
5x3	141.3x88.9	21		122	122
125x100	139.7x114.3	21	-	122	122
5x4	141.3x114.3	21		122	122
125x125	139.7x139.7	21	124	-	-
5x5	141.3x141.3	21	124	-	-
150x50	165.1x60.3	21	-	140	140
6x2	168.3x60.3	21	-	140	140
150x65	165.1x76.1	21	-	140	140
6x2.1/2	168.3x73.0	21	-	140	140
150x80	165.1x88.9	21	-	140	140
6x3	168.3x88.9	21	-	140	140
150x100	165.1x114.3	21	-	140	140
6x4	168.3x114.3	21	-	140	140
150x125	165.1x139.7	21	-	140	140
6x5	168.3x141.3	21	-	140	140
150x150	165.1x165.1	21	140	-	-
6x6	168.3x168.3	21	140	-	-

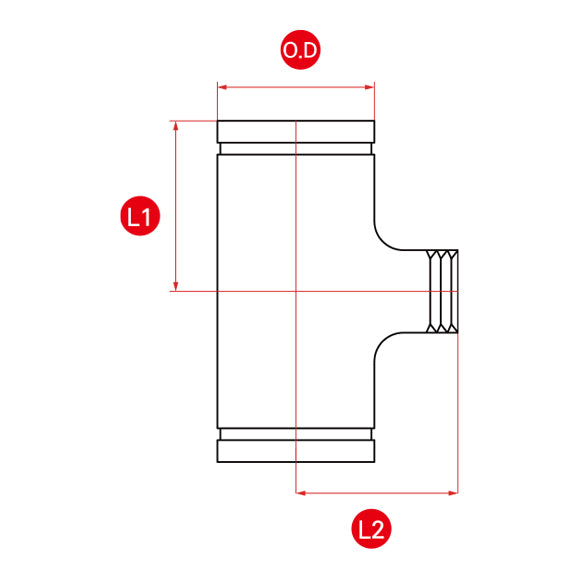

[ Threaded Reducing Tee - XGQT04S ]

Nominal Size DN Inch	Pipe O.D. (mm)	Max.Working Pressure (kgf/cm2)	Dimensions(mm)/Length L
			Grooved Tee Socket Type(XGQT04S)
			L1	L2
50x25 2x1	60.3x33.7	21	70	70
50x32 2x1.1/4	60.3x42.4	21	70	70
50x40 2x1.1/2	60.3x48.3	21	70	70
65x25	76.1x33.7	21	76	76
2.1/2x1	73.0x33.7	21	76	76
65x32	76.1x42.4	21	76	76
2.1/2x1.1/4	73.0x42.4	21	76	76
65x40	76.1x48.3	21	76	76
2.1/2x1.1/2	73.0x48.3	21	76	76
65x50	76.1x60.3	21	76	76
2.1/2x2	73.0x60.3	21	76	76
80x25 3x1	88.9x33.7	21	86	86
80x32 3x1.1/4	88.9x42.4	21	86	86
80x40 3x1.1/2	88.9x48.3	21	86	86
80x50 3x2	88.9x60.3	21	86	86
100x25 4x1	114.3x33.7	21	102	102
100x32 4x1.1/4	114.3x42.4	21	102	102
100x40 4x1.1/2	114.3x48.3	21	102	102
100x50 4x2	114.3x60.3	21	102	102
125x25	139.7x33.7	21	122	122
5x1	141.3x33.7	21	122	122
125x32	139.7x42.4	21	122	122
5x1.1/4	141.3x42.4	21	122	122
125x40	139.7x48.3	21	122	122
5x1.1/2	141.3x48.3	21	122	122
125x50	139.7x60.3	21	122	122
5x2	141.3x60.3	21	122	122
150x25	165.1x33.7	21	140	140
6x1	168.3x33.7	21	140	140
150x32	165.1x42.4	21	140	140
6x1.1/4	168.3x42.4	21	140	140
150x40	165.1x48.3	21	140	140
6x1.1/2	168.3x48.3	21	140	140
150x50	165.1x60.3	21	140	140
6x2	168.3x60.3	21	140	140
