It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- Material: Carbon steel pipe (A234 WPB, SPP, SPPS250)
- Painting: Epoxy powder painting
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

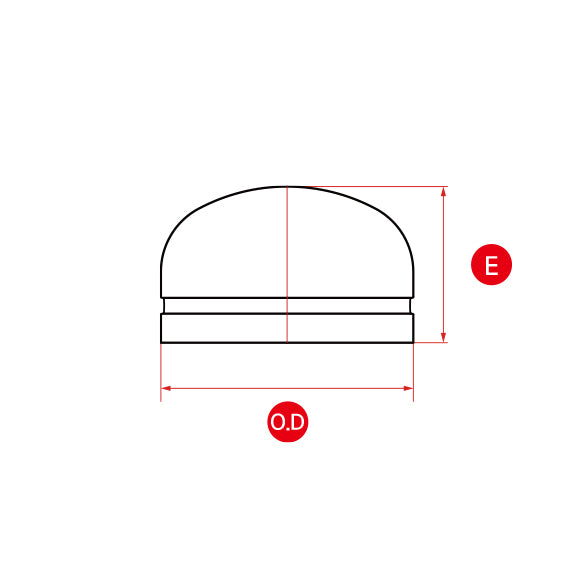

[ Product specification ]
| Sortation | For general service | For pressure service | ||||
|---|---|---|---|---|---|---|
| Nominal Size DN Inch |
Outside Dia OD (mm) |
L (mm) |
Wall Thick T (mm) |
Weight (Kg) |
Wall Thick T (mm) |
Weight (Kg) |
| 40 1.1/2 |
48.6 | 45.0 | 3.5 | 0.2 | 3.7 | 0.2 |
| 50 2 |
60.5 | 50.0 | 3.8 | 0.3 | 3.9 | 0.3 |
| 65 | 76.3 | 55.0 | 4.2 | 0.5 | 5.2 | 0.5 |
| 2.1/2 | 73.0 | 55.0 | 4.2 | 0.5 | 5.2 | 0.5 |
| 80 3 |
89.1 | 65.0 | 4.2 | 0.6 | 5.5 | 0.7 |
| 100 4 |
114.3 | 74.0 | 4.5 | 1.0 | 6.0 | 1.3 |
| 125 | 139.8 | 76.2 | 4.5 | 1.5 | 6.6 | 2.1 |
| 5 | 141.3 | 76.2 | 4.5 | 1.5 | 6.6 | 2.1 |
| 150 | 165.2 | 88.9 | 5.0 | 2.1 | 7.1 | 3.1 |
| 6 | 168.3 | 88.9 | 5.0 | 2.1 | 7.1 | 3.1 |
| 200 | 216.3 | 101.6 | 5.8 | 4.0 | 8.2 | 5.6 |
| 8 | 219.1 | 101.6 | 5.8 | 4.0 | 8.2 | 5.6 |
| 250 | 267.4 | 127.0 | 6.6 | 6.6 | 9.3 | 9.8 |
| 10 | 273.0 | 127.0 | 6.6 | 6.6 | 9.3 | 9.8 |
| 300 | 318.5 | 152.4 | 6.9 | 9.8 | 10.3 | 15.5 |
| 12 | 323.9 | 152.4 | 6.9 | 9.8 | 10.3 | 15.5 |
| 350 14 |
355.6 | 165.1 | 7.9 | 18.1 | 11.1 | 20.4 |
| 400 16 |
406.4 | 177.8 | 7.9 | 22.5 | 12.7 | 29.3 |
| 450 18 |
457.2 | 203.2 | 7.9 | 27.5 | 14.3 | 45.6 |
| 500 20 |
508.0 | 228.6 | 7.9 | 34.9 | 15.1 | 59.5 |
| 550 22 |
558.8 | 254.0 | 7.9 | 41.6 | 15.1 | - |
| 600 24 |
609.6 | 266.7 | 7.9 | 48.9 | 17.4 | - |
※※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
