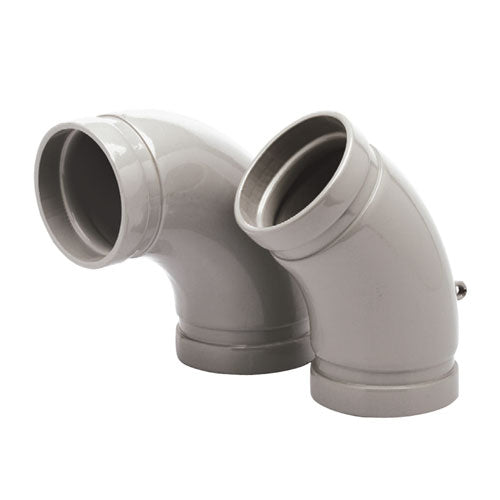

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- 90/45 Degree, 22.5/11.25 Degree
- Material: Carbon steel pipe (A234 WPB, SPP, SPPS250)
- Painting: Epoxy powder painting
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

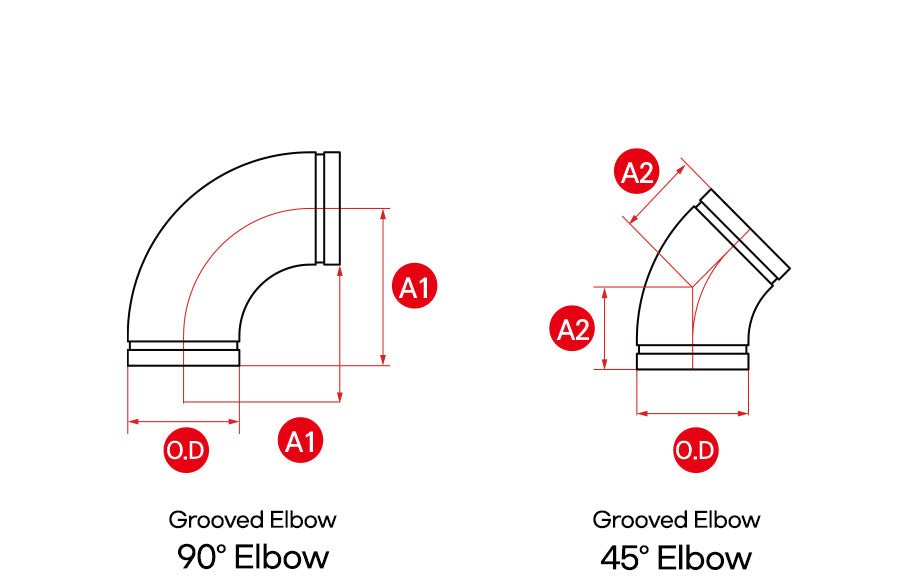

[ 90/45 DEGREE Product specification ]
| Sortation | For general service | For pressure service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size DN Inch |
Pipe O.D (mm) |
Wall Thick T (mm) |
90° Elbow | 45° Elbow | 90° Elbow | 45° Elbow | ||||
| A1 (mm) |
Weight (Kg) |
A2 (mm) |
Weight (Kg) |
A1 (mm) |
Weight (Kg) |
A2 (mm) |
Weight (Kg) |
|||
| 40 1.1/2 |
48.6 | 3.5 | 77.0 | 0.5 | 47.0 | 0.3 | 77.0 | 0.6 | 47.0 | 0.3 |
| 50 2 |
60.5 | 3.8 | 94.0 | 0.8 | 54.0 | 0.5 | 94.0 | 0.9 | 54.0 | 0.5 |
| 65 | 76.3 | 4.2 | 110.0 | 1.2 | 60.0 | 0.7 | 110.0 | 1.5 | 60.0 | 0.8 |
| 2.1/2 | 73.0 | 4.2 | 110.0 | 1.2 | 60.0 | 0.7 | 110.0 | 1.5 | 60.0 | 0.8 |
| 80 3 |
89.1 | 4.2 | 129.0 | 1.8 | 71.0 | 1.0 | 129.0 | 2.2 | 71.0 | 1.1 |
| 100 4 |
114.3 | 4.5 | 160.0 | 3.1 | 84.0 | 1.6 | 160.0 | 4.2 | 84.0 | 2.1 |
| 125 | 139.8 | 4.8 | 191.0 | 4.9 | 99.0 | 2.3 | 191.0 | 7.0 | 99.0 | 3.5 |
| 5 | 141.3 | 4.8 | 191.0 | 4.9 | 99.0 | 2.3 | 191.0 | 7.0 | 99.0 | 3.5 |
| 150 | 165.2 | 5.0 | 229.0 | 7.1 | 115.0 | 3.6 | 229.0 | 9.9 | 115.0 | 5.0 |
| 6 | 168.3 | 5.0 | 229.0 | 7.1 | 115.0 | 3.6 | 229.0 | 9.9 | 115.0 | 5.0 |
| 200 | 216.3 | 5.8 | 305.0 | 14.4 | 150.0 | 7.1 | 305.0 | 20.1 | 150.0 | 10.0 |
| 8 | 219.1 | 5.8 | 305.0 | 14.4 | 150.0 | 7.1 | 305.0 | 20.1 | 150.0 | 10.0 |
| 250 | 267.4 | 6.6 | 381.0 | 25.4 | 181.0 | 12.1 | 381.0 | 35.4 | 181.0 | 17.7 |
| 10 | 273.0 | 6.6 | 381.0 | 25.4 | 181.0 | 12.1 | 381.0 | 35.4 | 181.0 | 17.7 |
| 300 | 318.5 | 6.9 | 457.0 | 38.1 | 189.0 | 18.2 | 457.0 | 56.2 | 189.0 | 28.2 |
| 12 | 323.9 | 6.9 | 457.0 | 38.1 | 189.0 | 18.2 | 457.0 | 56.2 | 189.0 | 28.2 |
| 350 14 |
355.6 | 7.9 | 533.4 | 56.6 | 220.9 | 28.0 | 533.4 | 73.9 | 220.9 | 37.0 |
| 400 16 |
406.4 | 7.9 | 609.6 | 74.3 | 252.5 | 37.0 | 609.6 | 118.0 | 252.5 | 59.0 |
| 450 18 |
457.2 | 7.9 | 685.8 | 94.2 | 284.1 | 47.0 | 685.8 | 168.0 | 284.1 | 84.0 |
| 500 20 |
508.0 | 7.9 | 762.0 | 116.6 | 315.6 | 59.0 | 762.0 | 219.0 | 315.6 | 110.0 |
| 550 22 |
558.8 | 7.9 | 838.2 | 141.2 | 347.2 | 71.0 | 838.2 | - | 347.2 | - |
| 600 24 |
609.6 | 7.9 | 914.4 | 168.3 | 378.7 | 84.0 | 914.4 | - | 378.7 | - |
[ 22.5/11.25 DEGREE Product specification ]
| Sortation | For general service | For pressure service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size DN Inch |
Pipe O.D (mm) |
Wall Thick T (mm) |
22.5° Elbow | 11.25° Elbow | 22.5° Elbow | 11.25° Elbow | ||||
| A3 (mm) |
Weight (Kg) |
A4 (mm) |
Weight (Kg) |
A3 (mm) |
Weight (Kg) |
A4 (mm) |
Weight (Kg) |
|||
| 50 2 |
60.5 | 3.8 | 39.0 | 0.4 | 32.0 | 0.3 | 39.0 | 0.4 | 32.0 | 0.3 |
| 65 | 76.3 | 4.2 | 42.0 | 0.5 | 33.0 | 0.4 | 42.0 | 0.6 | 33.0 | 0.4 |
| 2.1/2 | 73.0 | 4.2 | 42.0 | 0.5 | 33.0 | 0.4 | 42.0 | 0.6 | 33.0 | 0.4 |
| 80 3 |
89.1 | 4.2 | 50.0 | 0.8 | 40.0 | 0.6 | 50.0 | 0.8 | 40.0 | 0.6 |
| 100 4 |
114.3 | 4.5 | 56.0 | 1.2 | 43.0 | 0.8 | 56.0 | 1.6 | 43.0 | 1.1 |
| 5 | 141.3 | 4.8 | 66.0 | 1.8 | 50.0 | 1.2 | 66.0 | 2.7 | 50.0 | 1.8 |
| 6 | 168.3 | 5.0 | 74.0 | 2.8 | 54.0 | 1.7 | 74.0 | 3.9 | 54.0 | 2.5 |
| 8 | 219.1 | 5.8 | 93.0 | 5.5 | 66.0 | 3.1 | 93.0 | 7.7 | 66.0 | 5.0 |
| 10 | 273.0 | 6.6 | 108.0 | 8.1 | 74.0 | 4.9 | 108.0 | 11.7 | 74.0 | 8.8 |
| 12 | 323.9 | 6.9 | 131.0 | 12.2 | 90.0 | 7.5 | 131.0 | 18.6 | 90.0 | 14.1 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
