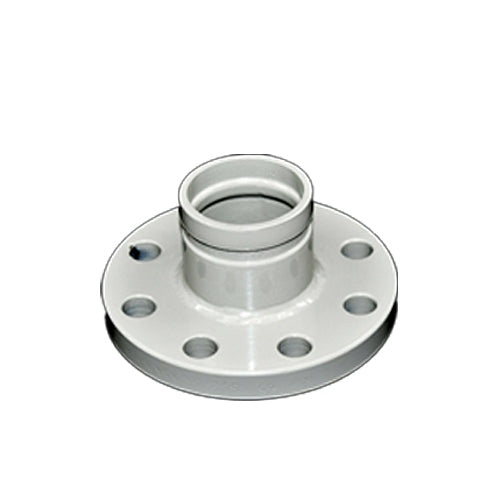

Grooved Flange Adaptor

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

Grooved type
Material: Carbon steel pipe (A234 WPB, SPP, SPPS250)
Painting: Epoxy powder painting

Product specification
Video
Data Download

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

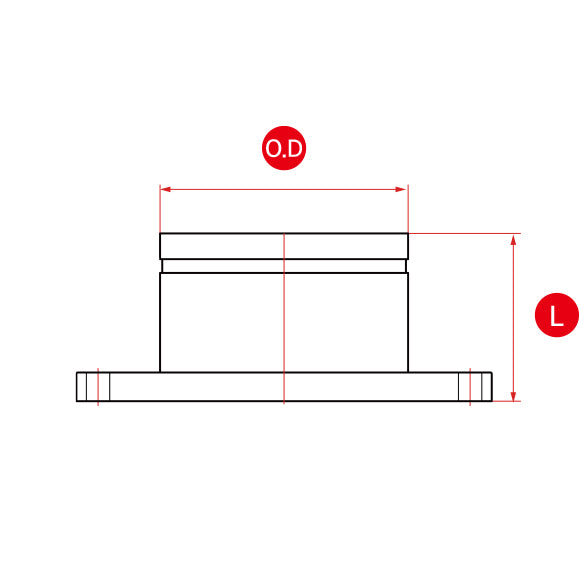

[ Product specification ]

구분			일반배관용(10K)		압력배관용(20K)
Nominal Size DN inch	Outside Dia OD (mm)	L (mm)	Wall Thick T (mm)	Weight (Kg)	Wall Thick T (mm)	Weight (Kg)
40 1.1/2	48.6	75	3.5	1.8	3.7	2.0
50 2	60.5	80	3.8	2.3	3.9	2.8
65	76.3	85	4.2	3.1	5.2	4.1
2.1/2	73.0	85	4.2	3.1	5.2	4.1
80 3	89.1	85	4.2	3.3	5.5	4.5
100 4	114.3	90	4.5	4.2	6.0	6.4
125	139.8	95	4.5	6.3	6.6	10.1
5	141.3	95	4.5	6.3	6.6	10.1
150	165.2	100	5.0	8.3	7.1	11.8
6	168.3	100	5.0	8.3	7.1	11.8
200	216.3	115	5.8	11.0	8.2	15.3
8	219.1	115	5.8	11.0	8.2	15.3
250	267.4	120	6.6	17.6	9.3	28.6
10	273.0	120	6.6	17.6	9.3	28.6
300	318.5	120	6.9	20.3	10.3	35.2
12	323.9	120	6.9	20.3	10.3	35.2
350 14	355.6	190	7.9	30.6	11.1	53.1
400 16	406.4	220	7.9	42.3	12.7	73.3
450 18	457.2	225	7.9	52.7	14.3	96.4
500 20	508.0	260	7.9	62.9	15.1	114.5
550 22	558.8	280	7.9	79.7	15.1	138.5
600 24	609.6	285	7.9	86.0	17.4	156.4
