It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

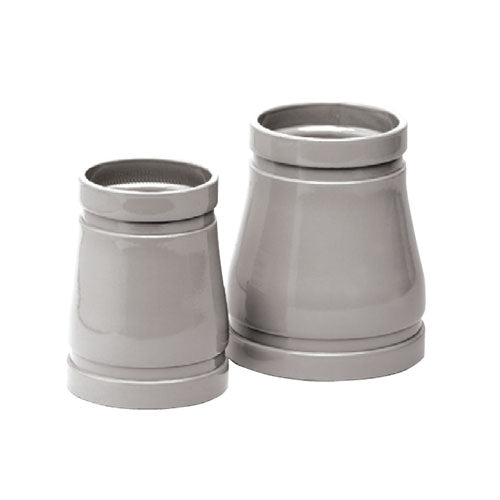

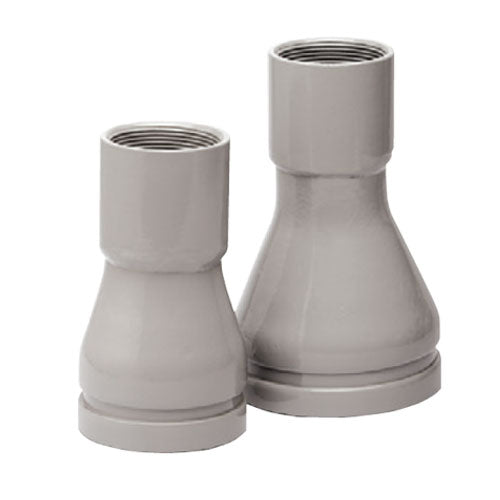

- Grooved Outlet, Threaded Outlet
- Material: Carbon steel pipe (A234 WPB, SPP, SPPS250)
- Painting: Epoxy powder painting
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

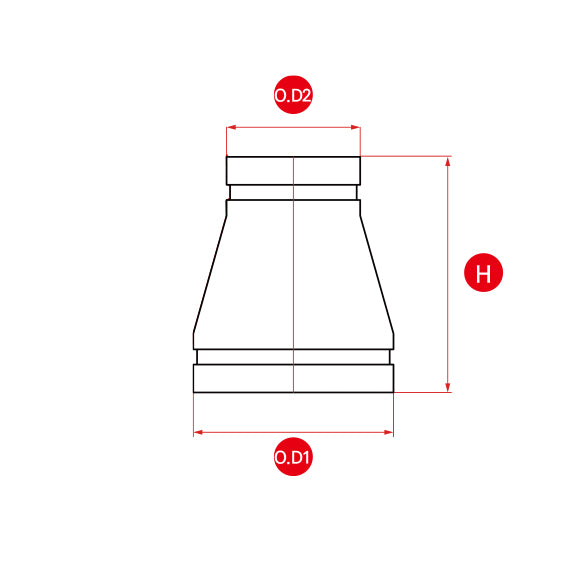

[ Grooved Outlet Product specification ]
| Sortation | For general service(Ecc, Con) | For pressure service(Ecc, Con) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size (A, inch) |
End to End H (mm) |
Large End | Small End | Weight (Kg) |
Large End | Small End | Weight (Kg) |
||||
| Outside Dia OD1 (mm) |
Wall Thick T1 (mm) |
Outside Dia OD2 (mm) |
Wall Thick T2 (mm) |
Outside Dia OD1 (mm) |
Wall Thick T1 (mm) |
Outside Dia OD2 (mm) |
Wall Thick T2 (mm) |
||||
| 50x40 2x1.1/2 |
105 | 60.5 | 3.8 | 48.6 | 3.5 | 0.4 | 60.5 | 3.9 | 48.6 | 3.7 | 0.4 |
| 65x40 | 113 | 76.3 | 4.2 | 48.6 | 3.5 | 0.6 | 76.3 | 5.2 | 48.6 | 3.7 | 0.6 |
| 2.1/2x1.1/2 | 113 | 73.0 | 4.2 | 48.6 | 3.5 | 0.6 | 73.0 | 5.2 | 48.6 | 3.7 | 0.6 |
| 65x50 | 113 | 76.3 | 4.2 | 60.5 | 3.8 | 0.7 | 76.3 | 5.2 | 60.5 | 3.9 | 0.7 |
| 2.1/2x2 | 113 | 73.0 | 4.2 | 60.5 | 3.8 | 0.7 | 73.0 | 5.2 | 60.5 | 3.9 | 0.7 |
| 80x50 3x2 |
120 | 89.1 | 4.2 | 60.5 | 3.8 | 0.8 | 89.1 | 5.5 | 60.5 | 3.9 | 0.8 |
| 80x65 | 120 | 89.1 | 4.2 | 76.3 | 4.2 | 0.9 | 89.1 | 5.5 | 76.3 | 5.2 | 0.9 |
| 3x2.1/2 | 120 | 89.1 | 4.2 | 73.0 | 4.2 | 0.9 | 89.1 | 5.5 | 73.0 | 5.2 | 0.9 |
| 100x50 4x2 |
135 | 114.3 | 4.5 | 60.5 | 3.8 | 1.2 | 114.3 | 6.0 | 60.5 | 3.9 | 1.4 |
| 100x65 | 135 | 114.3 | 4.5 | 76.3 | 4.2 | 1.2 | 114.3 | 6.0 | 76.3 | 5.2 | 1.5 |
| 4x2.1/2 | 135 | 114.3 | 4.5 | 73.0 | 4.2 | 1.2 | 114.3 | 6.0 | 73.0 | 5.2 | 1.5 |
| 100x80 4x3 |
135 | 114.3 | 4.5 | 89.1 | 4.2 | 1.3 | 114.3 | 6.0 | 89.1 | 5.5 | 1.6 |
| 125x65 | 161 | 139.8 | 4.5 | 76.3 | 4.2 | 1.8 | 139.8 | 6.6 | 76.3 | 5.2 | 2.3 |
| 5x2.1/2 | 161 | 141.3 | 4.5 | 73.0 | 4.2 | 1.8 | 141.3 | 6.6 | 73.0 | 5.2 | 2.3 |
| 125x80 | 161 | 139.8 | 4.5 | 89.1 | 4.2 | 1.9 | 139.8 | 6.6 | 89.1 | 5.5 | 2.5 |
| 5x3 | 161 | 141.3 | 4.5 | 89.1 | 4.2 | 1.9 | 141.3 | 6.6 | 89.1 | 5.5 | 2.5 |
| 125x100 | 161 | 139.8 | 4.5 | 114.3 | 4.5 | 2.0 | 139.8 | 6.6 | 114.3 | 6.0 | 2.8 |
| 5x4 | 161 | 141.3 | 4.5 | 114.3 | 4.5 | 2.0 | 141.3 | 6.6 | 114.3 | 6.0 | 2.8 |
| 150x65 | 171 | 165.2 | 5.0 | 89.1 | 4.2 | 2.5 | 165.2 | 7.1 | 89.1 | 5.5 | 3.5 |
| 6x2.1/2 | 171 | 168.3 | 5.0 | 89.1 | 4.2 | 2.5 | 168.3 | 7.1 | 89.1 | 5.5 | 3.5 |
| 150x80 | 171 | 165.2 | 5.0 | 89.1 | 4.2 | 2.5 | 165.2 | 7.1 | 89.1 | 5.5 | 3.5 |
| 6x3 | 171 | 168.3 | 5.0 | 89.1 | 4.2 | 2.5 | 168.3 | 7.1 | 89.1 | 5.5 | 3.5 |
| 150x100 | 171 | 165.2 | 5.0 | 114.3 | 4.5 | 2.7 | 165.2 | 7.1 | 114.3 | 6.0 | 3.7 |
| 6x4 | 171 | 168.3 | 5.0 | 114.3 | 4.5 | 2.7 | 168.3 | 7.1 | 114.3 | 6.0 | 3.7 |
| 150x125 | 171 | 165.2 | 5.0 | 139.8 | 4.5 | 2.9 | 165.2 | 7.1 | 139.8 | 6.6 | 3.9 |
| 6x5 | 171 | 168.3 | 5.0 | 141.3 | 4.5 | 2.9 | 168.3 | 7.1 | 141.3 | 6.6 | 3.9 |
| 200x100 | 190 | 216.3 | 5.8 | 114.3 | 4.5 | 4.3 | 216.3 | 8.2 | 114.3 | 6.0 | 5.8 |
| 8x4 | 190 | 219.1 | 5.8 | 114.3 | 4.5 | 4.3 | 219.1 | 8.2 | 114.3 | 6.0 | 5.8 |
| 200x125 | 190 | 216.3 | 5.8 | 139.8 | 4.5 | 4.5 | 216.3 | 8.2 | 139.8 | 6.6 | 6.0 |
| 8x5 | 190 | 219.1 | 5.8 | 141.3 | 4.5 | 4.5 | 219.1 | 8.2 | 139.8 | 6.6 | 6.0 |
| 200x150 | 190 | 216.3 | 5.8 | 165.2 | 5.0 | 4.7 | 216.3 | 8.2 | 165.2 | 7.1 | 6.3 |
| 8x6 | 190 | 219.1 | 5.8 | 168.3 | 5.0 | 4.7 | 219.1 | 8.2 | 168.3 | 7.1 | 6.3 |
| 250x125 | 220 | 267.4 | 6.6 | 139.8 | 4.5 | 6.9 | 267.4 | 9.3 | 139.8 | 6.6 | 9.5 |
| 10x5 | 220 | 273.0 | 6.6 | 141.3 | 4.5 | 6.9 | 273.0 | 9.3 | 141.3 | 6.6 | 9.5 |
| 250x150 | 220 | 267.4 | 6.6 | 165.2 | 5.0 | 7.2 | 267.4 | 9.3 | 165.2 | 7.1 | 9.8 |
| 10x6 | 220 | 273.0 | 6.6 | 168.3 | 5.0 | 7.2 | 273.0 | 9.3 | 168.3 | 7.1 | 9.8 |
| 250x200 | 220 | 267.4 | 6.6 | 216.3 | 5.8 | 7.7 | 267.4 | 9.3 | 216.3 | 8.2 | 10.5 |
| 10x8 | 220 | 273.0 | 6.6 | 219.1 | 5.8 | 7.7 | 273.0 | 9.3 | 219.1 | 8.2 | 10.5 |
| 300x150 | 240 | 318.5 | 6.9 | 165.2 | 5.0 | 9.7 | 318.5 | 10.3 | 165.2 | 7.1 | 15.1 |
| 12x6 | 240 | 323.9 | 6.9 | 168.3 | 5.0 | 9.7 | 323.9 | 10.3 | 168.3 | 7.1 | 15.1 |
| 300x200 | 240 | 318.5 | 6.9 | 216.3 | 5.8 | 10.3 | 318.5 | 10.3 | 216.3 | 8.2 | 15.7 |
| 12x8 | 240 | 323.9 | 6.9 | 219.1 | 5.8 | 10.3 | 323.9 | 10.3 | 219.1 | 8.2 | 15.7 |
| 300x250 | 240 | 318.5 | 6.9 | 267.4 | 6.6 | 11.0 | 318.5 | 10.3 | 267.4 | 9.3 | 16.2 |
| 12x10 | 240 | 323.9 | 6.9 | 273.0 | 6.6 | 11.0 | 323.9 | 10.3 | 273.0 | 9.3 | 16.2 |
| 350x200 | 330.2 | 355.6 | 7.9 | 216.3 | 5.8 | 19.8 | 355.6 | 11.1 | 216.3 | 8.2 | 29.5 |
| 14x8 | 330.2 | 355.6 | 7.9 | 219.1 | 5.8 | 19.8 | 355.6 | 11.1 | 219.1 | 8.2 | 29.5 |
| 350x250 | 330.2 | 355.6 | 7.9 | 267.4 | 6.6 | 20.2 | 355.6 | 11.1 | 267.4 | 9.3 | 30.2 |
| 14x10 | 330.2 | 355.6 | 7.9 | 273.0 | 6.6 | 20.2 | 355.6 | 11.1 | 273.0 | 9.3 | 30.2 |
| 350x300 | 330.2 | 355.6 | 7.9 | 318.5 | 6.9 | 21.9 | 355.6 | 11.1 | 318.5 | 10.3 | 32.5 |
| 14x12 | 330.2 | 355.6 | 7.9 | 323.9 | 6.9 | 21.9 | 355.6 | 11.1 | 323.9 | 10.3 | 32.5 |
| 400x250 | 355.6 | 406.4 | 7.9 | 267.4 | 6.6 | 24.0 | 406.4 | 12.7 | 267.4 | 9.3 | 41.0 |
| 16x10 | 355.6 | 406.4 | 7.9 | 273.0 | 6.6 | 24.0 | 406.4 | 12.7 | 273.0 | 9.3 | 41.0 |
| 400x300 | 355.6 | 406.4 | 7.9 | 318.5 | 6.9 | 25.4 | 406.4 | 12.7 | 318.5 | 10.3 | 43.7 |
| 16x12 | 355.6 | 406.4 | 7.9 | 323.9 | 6.9 | 25.4 | 406.4 | 12.7 | 323.9 | 10.3 | 43.7 |
| 400x350 16x14 |
355.6 | 406.4 | 7.9 | 355.6 | 7.9 | 26.6 | 406.4 | 12.7 | 355.6 | 11.1 | 45.2 |
| 450x300 | 381 | 457.2 | 7.9 | 318.5 | 6.9 | 29.0 | 457.2 | 14.3 | 318.5 | 10.3 | 54.0 |
| 18x12 | 381 | 457.2 | 7.9 | 323.9 | 6.9 | 29.0 | 457.2 | 14.3 | 323.9 | 10.3 | 54.0 |
| 450x350 18x14 |
381 | 457.2 | 7.9 | 355.6 | 7.9 | 30.5 | 457.2 | 14.3 | 355.6 | 11.1 | 57.0 |
| 450x400 18x16 |
381 | 457.2 | 7.9 | 406.4 | 7.9 | 32.4 | 457.2 | 14.3 | 406.4 | 12.7 | 62.0 |
| 500x350 20x14 |
508 | 508.0 | 7.9 | 355.6 | 7.9 | 43.0 | 508.0 | 15.1 | 355.6 | 11.1 | 88.0 |
| 500x400 20x16 |
508 | 508.0 | 7.9 | 406.4 | 7.9 | 45.5 | 508.0 | 15.1 | 406.4 | 12.7 | 92.0 |
| 500x450 20x18 |
508 | 508.0 | 7.9 | 457.2 | 7.9 | 50.0 | 508.0 | 15.1 | 457.2 | 14.3 | 97.4 |
| 550x450 22x18 |
508 | 558.8 | 7.9 | 457.2 | 7.9 | 51.0 | 558.8 | 15.1 | 457.2 | 14.3 | - |
| 550x500 22x20 |
508 | 558.8 | 7.9 | 508.0 | 7.9 | 53.1 | 558.8 | 15.1 | 508.0 | 15.1 | - |
| 600x500 24x20 |
508 | 609.6 | 7.9 | 508.0 | 7.9 | 55.7 | 609.6 | 17.4 | 508.0 | 15.1 | - |
| 600x550 24x22 |
508 | 609.6 | 7.9 | 558.8 | 7.9 | 58.2 | 609.6 | 17.4 | 558.8 | 15.1 | - |

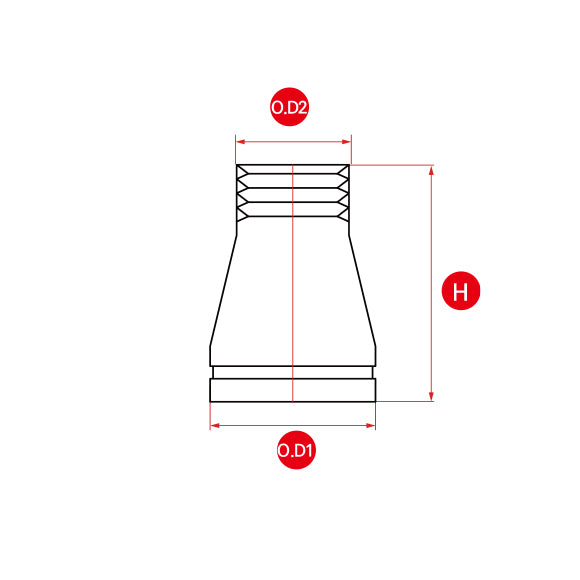

[ Threaded Outlet Product specification ]
| Sortation | For general service | For pressure service | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Size DN inch |
End to End H (mm) |
Large End | Small End | Large End | Small End | |||
| Outside Dia OD1 (mm) |
Wall Thick T1 (mm) |
Threaded Soket Length (mm) |
Outside Dia OD2 (mm) |
Wall Thick T2 (mm) |
Threaded Soket Length (mm) |
|||
| 65 2.1/2 |
40 | 153.0 | 76.3 73.0 |
4.2 | 48.0 | 76.3 73.0 |
5.2 | 48.0 |
| 50 | 161.0 | 76.3 73.0 |
4.2 | 56.0 | 76.3 73.0 |
5.2 | 56.0 | |
| 80 3 |
40 | 153.0 | 89.1 | 4.2 | 48.0 | 89.1 | 5.5 | 48.0 |
| 50 | 161.0 | 89.1 | 4.2 | 56.0 | 89.1 | 5.5 | 56.0 | |
| 100 4 |
15 | 109.0 | 114.3 | 4.5 | 34.0 | 114.3 | 6.0 | 34.0 |
| 20 | 112.0 | 114.3 | 4.5 | 36.0 | 114.3 | 6.0 | 36.0 | |
| 25 | 117.0 | 114.3 | 4.5 | 43.0 | 114.3 | 6.0 | 43.0 | |
| 40 | 168.0 | 114.3 | 4.5 | 48.0 | 114.3 | 6.0 | 48.0 | |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
