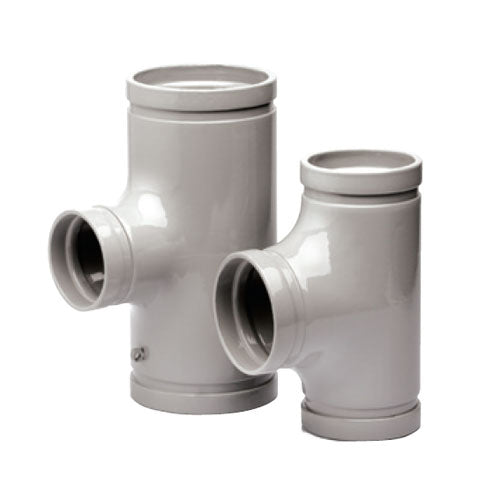

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

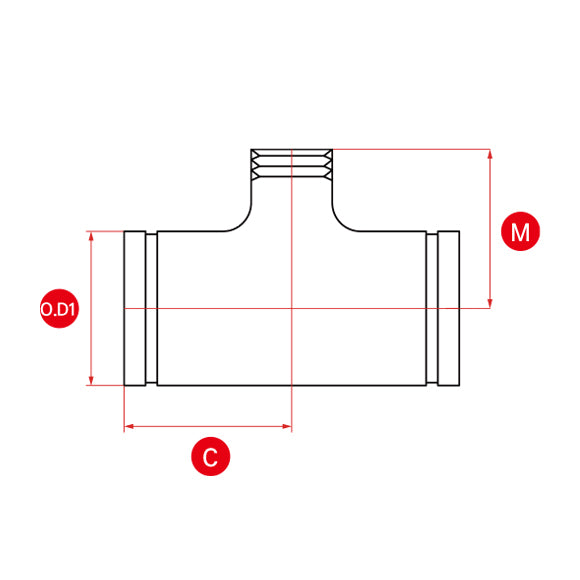

- Grooved Outlet, Threaded Outlet
- Material: Carbon steel pipe (A234 WPB, SPP, SPPS250)
- Painting: Epoxy powder painting
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

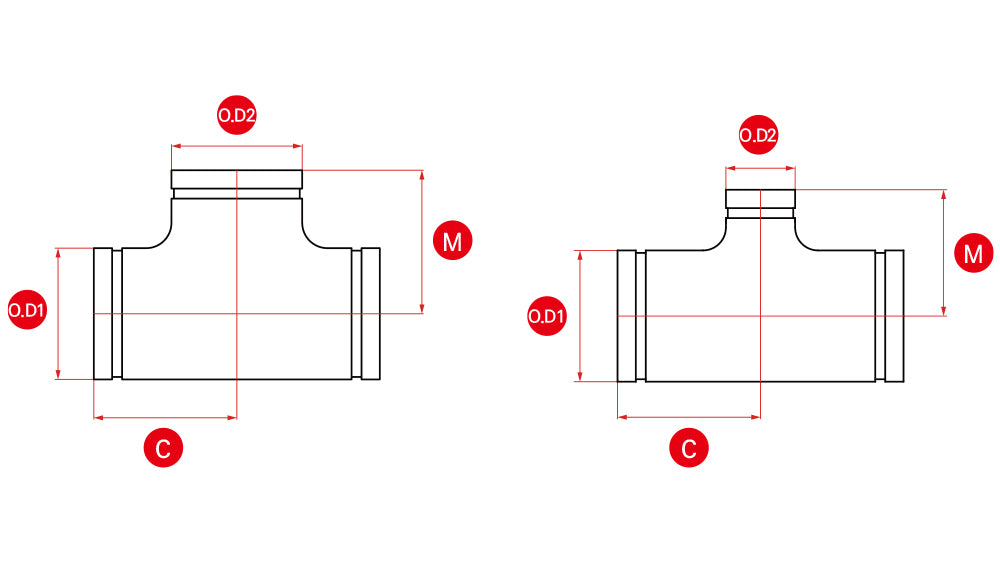

[ Grooved Outlet Product specification ]
| Normal Pressure (SPP) | Weight (Kg) | High Pressure (S40) | Weight (Kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size DN inch | Center to End | RUN | Outlet | RUN | Outlet | |||||||
| C(mm) | M(mm) | Outside Dia OD1 (mm) | Wall Thick T1 (mm) | Outside Dia OD2 (mm) | Wall Thick T2 (mm) | Outside Dia OD1 (mm) | Wall Thick T1 (mm) | Outside Dia OD2 (mm) | Wall Thick T2 (mm) | |||
| 50x50 2x2 |
81.0 | 81.0 | 60.5 | 3.8 | 60.5 | 3.8 | 1.1 | 60.5 | 3.9 | 60.5 | 3.9 | 1.2 |
| 65x50 | 94.0 | 90.0 | 76.3 | 4.2 | 60.5 | 3.8 | 1.7 | 76.3 | 5.2 | 60.5 | 3.9 | 2.0 |
| 2.1/2x2 | 94.0 | 94.0 | 73.0 | 4.2 | 60.5 | 3.8 | 1.7 | 73.0 | 5.2 | 60.5 | 3.9 | 2.0 |
| 65x65 |
94.0 | 94.0 | 76.3 | 4.2 | 76.3 | 4.2 | 1.8 | 76.3 | 5.2 | 76.3 | 5.2 | 2.0 |
| 2.1/2x2.1/2 | 94.0 | 94.0 | 73.0 | 4.2 | 73.0 | 4.2 | 1.8 | 73.0 | 5.2 | 73.0 | 5.2 | 2.0 |
| 80x50 3x2 |
101.0 | 93.0 | 89.1 | 4.2 | 60.5 | 3.8 | 2.1 | 89.1 | 5.5 | 60.5 | 3.9 | 2.4 |
| 80x65 | 101.0 | 98.0 | 89.1 | 4.2 | 76.3 | 4.2 | 2.2 | 89.1 | 5.5 | 76.3 | 5.2 | 2.5 |
| 3x2.1/2 | 101.0 | 98.0 | 89.1 | 4.2 | 73.0 | 4.2 | 2.2 | 89.1 | 5.5 | 73.0 | 5.2 | 2.5 |
| 80x80 3x3 |
101.0 | 101.0 | 89.1 | 4.2 | 89.1 | 4.2 | 2.2 | 89.1 | 5.5 | 89.1 | 5.5 | 2.5 |
| 100x50 4x2 |
125.0 | 110.0 | 114.3 | 4.5 | 60.5 | 3.8 | 3.3 | 114.3 | 6.0 | 60.5 | 3.9 | 4.0 |
| 100x65 | 125.0 | 118.0 | 114.3 | 4.5 | 76.3 | 4.2 | 3.5 | 114.3 | 6.0 | 76.3 | 5.2 | 4.1 |
| 4x2 1/2 | 125.0 | 118.0 | 114.3 | 4.5 | 73.0 | 4.2 | 3.5 | 114.3 | 6.0 | 73.0 | 5.2 | 4.1 |
| 100x80 4x3 |
125.0 | 121.0 | 114.3 | 4.5 | 89.1 | 4.2 | 4.2 | 114.3 | 6.0 | 89.1 | 5.5 | 4.2 |
| 100x100 4x4 |
125.0 | 125.0 | 114.3 | 4.5 | 114.3 | 4.5 | 4.5 | 114.3 | 6.0 | 114.3 | 6.0 | 4.5 |
| 125x65 | 123.8 | 116.0 | 141.3 | 4.5 | 76.3 | 4.2 | 4.8 | 141.3 | 6.6 | 76.3 | 5.2 | 6.5 |
| 125x80 | 123.8 | 120.0 | 141.3 | 4.5 | 89.1 | 4.2 | 4.8 | 141.3 | 6.6 | 89.1 | 5.5 | 6.6 |
| 5x3 | 123.8 | 120.0 | 141.3 | 4.5 | 89.1 | 4.2 | 4.9 | 141.3 | 6.6 | 89.1 | 5.5 | 6.6 |
| 125x100 | 123.8 | 124.0 | 139.8 | 4.5 | 114.3 | 4.5 | 5.2 | 139.8 | 6.6 | 114.3 | 6.0 | 6.7 |
| 5x4 | 123.8 | 124.0 | 141.3 | 4.5 | 114.3 | 4.5 | 5.2 | 141.3 | 6.6 | 114.3 | 6.0 | 6.7 |
| 125x125 | 123.8 | 129.8 | 139.8 | 4.5 | 139.8 | 4.5 | 5.5 | 139.8 | 6.6 | 139.8 | 6.6 | 7.2 |
| 5x5 | 123.8 | 129.8 | 141.3 | 4.5 | 139.8 | 4.5 | 5.5 | 141.3 | 6.6 | 141.3 | 6.6 | 7.2 |
| 150x80 | 142.9 | 132.0 | 165.2 | 5.0 | 89.1 | 4.2 | 7.1 | 165.2 | 7.1 | 89.1 | 5.5 | 9.5 |
| 6x3 | 142.9 | 132.0 | 165.2 | 5.0 | 89.1 | 4.2 | 7.1 | 165.2 | 7.1 | 89.1 | 5.5 | 9.5 |
| 150x100 | 142.9 | 138.0 | 165.2 | 5.0 | 114.3 | 4.5 | 7.4 | 165.2 | 7.1 | 114.3 | 6.0 | 9.7 |
| 6x4 | 142.9 | 138.0 | 165.2 | 5.0 | 114.3 | 4.5 | 7.4 | 165.2 | 7.1 | 114.3 | 6.0 | 9.7 |
| 150x125 | 142.9 | 138.0 | 165.2 | 5.0 | 139.8 | 4.5 | 7.7 | 165.2 | 7.1 | 139.8 | 6.6 | 9.9 |
| 6x5 | 142.9 | 144.0 | 165.2 | 5.0 | 141.3 | 4.5 | 7.7 | 165.2 | 7.1 | 141.3 | 6.6 | 9.9 |
| 150x150 | 142.9 | 144.0 | 165.2 | 5.0 | 165.2 | 5.0 | 8.1 | 165.2 | 7.1 | 165.2 | 7.1 | 10.5 |
| 6x6 | 142.9 | 144.0 | 165.2 | 5.0 | 168.3 | 5.0 | 8.1 | 168.3 | 7.1 | 168.3 | 7.1 | 10.5 |
| 200x100 | 177.8 | 163.0 | 216.3 | 5.8 | 114.3 | 4.5 | 13.2 | 216.3 | 8.2 | 114.3 | 6.0 | 17.8 |
| 8x4 | 177.8 | 163.0 | 216.3 | 5.8 | 114.3 | 4.5 | 13.2 | 216.3 | 8.2 | 114.3 | 6.0 | 17.8 |
| 200x125 | 177.8 | 163.0 | 216.3 | 5.8 | 139.8 | 4.5 | 13.6 | 216.3 | 8.2 | 139.8 | 6.6 | 18.0 |
| 8x5 | 177.8 | 163.0 | 219.1 | 5.8 | 141.3 | 4.5 | 13.6 | 219.1 | 8.2 | 141.3 | 6.6 | 18.0 |
| 200x150 | 177.8 | 168.0 | 216.3 | 5.8 | 165.2 | 5.0 | 14.1 | 216.3 | 8.2 | 165.2 | 7.1 | 18.3 |
| 8x6 | 177.8 | 168.0 | 219.1 | 5.8 | 168.3 | 5.0 | 14.1 | 219.1 | 8.2 | 168.3 | 7.1 | 18.3 |
| 200x200 | 177.8 | 180.0 | 216.3 | 5.8 | 216.3 | 5.8 | 15.3 | 216.3 | 8.2 | 216.3 | 8.2 | 19.7 |
| 8x8 | 177.8 | 180.0 | 219.1 | 5.8 | 219.1 | 5.8 | 15.3 | 219.1 | 8.2 | 219.1 | 8.2 | 19.7 |
| 250x100 | 215.9 | 215.9 | 267.4 | 6.6 | 114.3 | 4.5 | 20.6 | 267.4 | 9.3 | 114.3 | 6.0 | 20.0 |
| 10x4 | 215.9 | 215.9 | 267.4 | 6.6 | 273.0 | 4.5 | 20.6 | 273.0 | 9.3 | 139.8 | 6.0 | 30.7 |
| 250x125 | 215.9 | 215.9 | 267.4 | 6.6 | 139.8 | 4.5 | 20.7 | 267.4 | 9.3 | 139.8 | 6.6 | 30.7 |
| 10x5 | 215.9 | 215.9 | 273.0 | 6.6 | 141.3 | 4.5 | 21.7 | 273.0 | 9.3 | 141.3 | 6.6 | 30.7 |
| 250x150 | 215.9 | 215.9 | 267.4 | 6.6 | 165.2 | 5.0 | 22.2 | 267.4 | 9.3 | 165.2 | 7.1 | 31.0 |
| 10x6 | 215.9 | 215.9 | 273.0 | 6.6 | 168.3 | 5.0 | 22.2 | 273.0 | 9.3 | 168.3 | 7.1 | 31.0 |
| 250x200 | 215.9 | 215.9 | 267.4 | 6.6 | 216.3 | 5.8 | 23.4 | 267.4 | 9.3 | 216.3 | 8.2 | 33.4 |
| 250x250 | 215.9 | 215.9 | 267.4 | 6.6 | 267.4 | 6.6 | 25.1 | 267.4 | 9.3 | 267.4 | 9.3 | 33.4 |
| 10x10 | 215.9 | 215.9 | 273.0 | 6.6 | 273.0 | 6.6 | 25.1 | 273.0 | 9.3 | 273.0 | 9.3 | 33.4 |
| 300x125 | 254.0 | 254.0 | 323.9 | 6.9 | 139.8 | 4.5 | 30.4 | 318.5 | 10.3 | 139.8 | 6.6 | 46.0 |
| 12x5 | 254.0 | 254.0 | 323.9 | 6.9 | 141.3 | 4.5 | 30.4 | 323.9 | 10.3 | 141.3 | 6.6 | 46.0 |
| 300x150 | 254.0 | 235.0 | 318.5 | 6.9 | 165.2 | 5.0 | 31.2 | 318.5 | 10.3 | 165.2 | 7.1 | 46.1 |
| 12x6 | 254.0 | 235.0 | 323.9 | 6.9 | 168.3 | 5.0 | 31.2 | 323.9 | 10.3 | 168.3 | 7.1 | 46.1 |
| 300x200 | 254.0 | 254.0 | 318.5 | 6.9 | 216.3 | 5.8 | 32.5 | 318.5 | 10.3 | 216.3 | 8.2 | 47.5 |
| 12x8 | 254.0 | 254.0 | 323.9 | 6.9 | 219.1 | 5.8 | 32.5 | 323.9 | 10.3 | 219.1 | 8.2 | 47.5 |
| 300x250 | 254.0 | 254.0 | 318.5 | 6.9 | 267.4 | 6.6 | 34.2 | 318.5 | 10.3 | 267.4 | 9.3 | 49.0 |
| 12x10 | 254.0 | 254.0 | 323.9 | 6.9 | 273.0 | 6.6 | 34.2 | 323.9 | 10.3 | 273.0 | 9.3 | 49.0 |
| 300x300 | 254.0 | 254.0 | 318.5 | 6.9 | 318.5 | 6.9 | 35.4 | 318.5 | 10.3 | 318.5 | 10.3 | 52.0 |
| 12x12 | 254.0 | 254.0 | 323.9 | 6.9 | 323.9 | 6.9 | 35.4 | 323.9 | 10.3 | 323.9 | 10.3 | 52.0 |
| 350x250 | 279.4 | 268.0 | 355.6 | 7.9 | 267.4 | 6.6 | 43.8 | 355.6 | 11.1 | 267.4 | 9.3 | 63.0 |
| 14x10 | 279.4 | 268.0 | 355.6 | 7.9 | 273.0 | 6.6 | 43.8 | 355.6 | 11.1 | 273.0 | 9.3 | 63.0 |
| 350x300 | 279.4 | 280.0 | 355.6 | 7.9 | 318.5 | 6.9 | 45.5 | 355.6 | 11.1 | 318.5 | 10.3 | 65.9 |
| 14x12 | 279.4 | 280.0 | 355.6 | 7.9 | 323.9 | 6.9 | 45.5 | 355.6 | 11.1 | 323.9 | 10.3 | 65.9 |
| 350x350 | 279.4 | 290.0 | 355.6 | 7.9 | 355.6 | 7.9 | 46.9 | 355.6 | 11.1 | 355.6 | 11.1 | 68.4 |
| 400x250 | 304.8 | 300.0 | 406.4 | 7.9 | 267.4 | 6.6 | 53.8 | 406.4 | 12.7 | 267.4 | 9.3 | 90.0 |
| 16x10 | 304.8 | 300.0 | 406.4 | 7.9 | 273.0 | 6.6 | 53.8 | 406.4 | 12.7 | 273.0 | 9.3 | 90.0 |
| 400x300 | 304.8 | 305.0 | 406.4 | 7.9 | 318.5 | 6.9 | 55.0 | 406.4 | 12.7 | 318.5 | 10.3 | 90.5 |
| 16x12 | 304.8 | 305.0 | 406.4 | 7.9 | 323.9 | 6.9 | 55.0 | 406.4 | 12.7 | 323.9 | 10.3 | 90.5 |
|
400x350 |
304.8 | 315.0 | 406.4 | 7.9 | 355.6 | 7.9 | 56.5 | 406.4 | 12.7 | 355.6 | 11.1 | 93.2 |
| 400x400 16x16 |
304.8 | 315.0 | 406.4 | 7.9 | 406.4 | 7.9 | 57.6 | 406.4 | 12.7 | 406.4 | 12.7 | 96.4 |
| 450x350 18x14 |
342.9 | 340.0 | 457.2 | 7.9 | 355.6 | 7.9 | 69.3 | 457.2 | 14.3 | 355.6 | 11.1 | 128.0 |
| 450x450 18x18 |
342.9 | 353.0 | 457.2 | 7.9 | 457.2 | 7.9 | 72.7 | 457.2 | 14.3 | 457.2 | 14.3 | 137.5 |
| 500x400 20x16 |
381.0 | 366.0 | 508.0 | 7.9 | 406.4 | 12.7 | 84.8 | 508.0 | 15.1 | 406.4 | 12.7 | 169.0 |
| 450x450 18x18 |
342.9 | 353.0 | 457.2 | 7.9 | 457.2 | 7.9 | 72.7 | 457.2 | 14.3 | 457.2 | 14.3 | 137.5 |
| 500x400 20x16 |
381.0 | 366.0 | 508.0 | 7.9 | 406.4 | 12.7 | 84.8 | 508.0 | 15.1 | 406.4 | 12.7 | 169.0 |
| 500x450 20x18 |
381.0 | 379.0 | 508.0 | 7.9 | 457.2 | 14.3 | 87.1 | 508.0 | 15.1 | 457.2 | 14.3 | 174.0 |
| 500x500 20x20 |
381.0 | 391.0 | 508.0 | 7.9 | 508.0 | 7.9 | 89.5 | 508.0 | 15.1 | 508.0 | 15.1 | 180.0 |
| 550x450 22x18 |
419.1 | 404.0 | 558.8 | 7.9 | 457.2 | 14.3 | 105.4 | 558.8 | 15.1 | 457.2 | 14.3 | - |
| 550x500 22x20 |
419.1 | 417.0 | 558.8 | 7.9 | 508.0 | 15.1 | 107.9 | 558.8 | 15.1 | 508.0 | 15.1 | - |
| 550x550 22x22 |
419.1 | 429.0 | 558.8 | 7.9 | 558.8 | 7.9 | 108.1 | 558.8 | 15.1 | 558.8 | 15.1 | - |
| 600x500 24x20 |
431.8 | 442.0 | 609.6 | 7.9 | 508.0 | 15.1 | 116.9 | 609.6 | 17.4 | 508.0 | 15.1 | - |
| 600x550 24x22 |
431.8 | 442.0 | 609.6 | 7.9 | 558.8 | 15.1 | 118.3 | 609.6 | 17.4 | 558.8 | 15.1 | - |
| 600x600 24x24 |
431.8 | 442.0 | 609.6 | 7.9 | 609.6 | 7.9 | 119.7 | 609.6 | 17.4 | 609.6 | 17.4 | - |
※ Please contact us for other sizes.
