Sch10s, Sch20s, Sch40s, 7.9T, STD, X-S

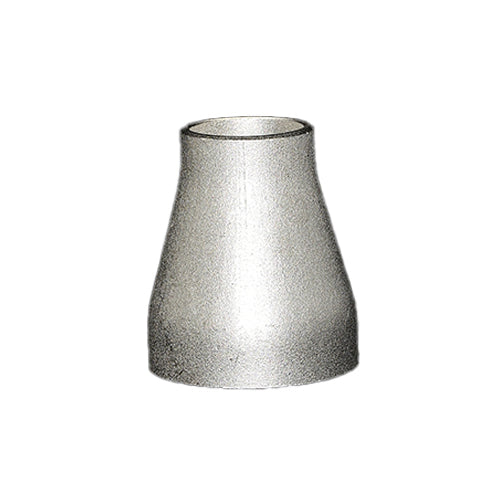

It is a stainless steel piping material for welding.
- KS B 1543 / JIS B 2312 / JIS B 2313
- Material: A403 WP304/304L, A403 WP316/316L, STS304/L, STS316/L
It is a stainless steel piping material for welding.
[ Sch10s, Sch20s, Sch40s Product specification ]
KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)
| Nominal Pipe Size |
Outside Diameter | Wall Thickness T | End to End H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| OD1 | OD2 | Sch 10s | Sch 20s | Sch 40s | |||||
| T1 | T2 | T1 | T2 | T1 | T2 | ||||
| 25X20 | 34.0 | 27.2 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.9 | 50.8 |
| 25X15 | 34.0 | 21.7 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.8 | 50.8 |
| 32X25 | 42.7 | 34.0 | 2.8 | 2.8 | 3.0 | 3.0 | 3.6 | 3.4 | 50.8 |
| 32X20 | 42.7 | 27.2 | 2.8 | 2.1 | 3.0 | 2.5 | 3.6 | 2.9 | 50.8 |
| 40X32 | 48.6 | 42.7 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.6 | 63.5 |
| 40X25 | 48.6 | 34.0 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.4 | 63.5 |
| 40X20 | 48.6 | 27.2 | 2.8 | 2.1 | 3.0 | 2.5 | 3.7 | 2.9 | 63.5 |
| 50X40 | 60.5 | 48.6 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.7 | 76.2 |
| 50X32 | 60.5 | 42.7 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.6 | 76.2 |
| 50X25 | 60.5 | 34.0 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.4 | 76.2 |
| 65X50 | 76.3 | 60.5 | 3.0 | 2.8 | 3.5 | 3.5 | 5.2 | 3.9 | 88.9 |
| 65X40 | 76.3 | 48.6 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.7 | 88.9 |
| 65X32 | 76.3 | 42.7 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.6 | 88.9 |
| 80X65 | 89.1 | 76.3 | 3.0 | 3.0 | 4.0 | 3.5 | 5.5 | 5.2 | 88.9 |
| 80X50 | 89.1 | 60.5 | 3.0 | 2.8 | 4.0 | 3.5 | 5.5 | 3.9 | 88.9 |
| 80X40 | 89.1 | 48.6 | 3.0 | 2.8 | 4.0 | 3.0 | 5.5 | 3.7 | 88.9 |
| 90X80 | 101.6 | 89.1 | 3.0 | 3.0 | 4.0 | 4.0 | 5.7 | 5.5 | 101.6 |
| 90X65 | 101.6 | 76.3 | 3.0 | 3.0 | 4.0 | 3.5 | 5.7 | 5.2 | 101.6 |
| 90X50 | 101.6 | 60.5 | 3.0 | 2.8 | 4.0 | 3.5 | 5.7 | 3.9 | 101.6 |
| 100X90 | 114.3 | 101.6 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.7 | 101.6 |
| 100X80 | 114.3 | 89.1 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.5 | 101.6 |
| 100X65 | 114.3 | 76.3 | 3.0 | 3.0 | 4.0 | 3.5 | 6.0 | 5.2 | 101.6 |
| 100X50 | 114.3 | 60.5 | 3.0 | 2.8 | 4.0 | 3.5 | 6.0 | 3.9 | 101.6 |
| 125X100 | 139.8 | 114.3 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 6.0 | 127.0 |
| 125X90 | 139.8 | 101.6 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 5.7 | 127.0 |
| 125X80 | 139.8 | 89.1 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 5.5 | 127.0 |
| 125X65 | 139.8 | 76.3 | 3.4 | 3.0 | 5.0 | 3.5 | 6.6 | 5.2 | 127.0 |
| 150X125 | 165.2 | 139.8 | 3.4 | 3.4 | 5.0 | 5.0 | 7.1 | 6.6 | 139.7 |
| 150X100 | 165.2 | 114.3 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 6.0 | 139.7 |
| 150X90 | 165.2 | 101.6 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 5.7 | 139.7 |
| 150X80 | 165.2 | 89.1 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 5.5 | 139.7 |
| 200X150 | 216.3 | 165.2 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 7.1 | 152.4 |
| 200X125 | 216.3 | 139.8 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 6.6 | 152.4 |
| 200X100 | 216.3 | 114.3 | 4.0 | 3.0 | 6.5 | 4.0 | 8.2 | 6.0 | 152.4 |
| 250X200 | 267.4 | 216.3 | 4.0 | 4.0 | 6.5 | 6.5 | 9.3 | 8.2 | 177.8 |
| 250X150 | 267.4 | 165.2 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 7.1 | 177.8 |
| 250X125 | 267.4 | 139.8 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 6.6 | 177.8 |
| 250X100 | 267.4 | 114.3 | 4.0 | 3.0 | 6.5 | 4.0 | 9.3 | 6.0 | 177.8 |
| 300X250 | 318.5 | 267.4 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 9.3 | 203.2 |
| 300X200 | 318.5 | 216.3 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 8.2 | 203.2 |
| 300X150 | 318.5 | 165.2 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 7.1 | 203.2 |
| 300X125 | 318.5 | 139.8 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 6.6 | 203.2 |
| 350X300 | 355.6 | 318.5 | 4.8 | 4.5 | 8.0 | 6.5 | 11.1 | 10.3 | 330.2 |
| 350X250 | 355.6 | 267.4 | 4.8 | 4.0 | 8.0 | 6.5 | 11.1 | 9.3 | 330.2 |
| 350X200 | 355.6 | 216.3 | 4.8 | 4.0 | 8.0 | 6.5 | 11.1 | 8.2 | 330.2 |
| 350X150 | 355.6 | 165.2 | 4.8 | 3.4 | 8.0 | 5.0 | 11.1 | 7.1 | 330.2 |
| 400X350 | 406.4 | 355.6 | 4.8 | 4.8 | 8.0 | 8.0 | 12.7 | 11.1 | 355.6 |
| 400X300 | 406.4 | 318.5 | 4.8 | 4.5 | 8.0 | 6.5 | 12.7 | 10.3 | 355.6 |
| 400X250 | 406.4 | 267.4 | 4.8 | 4.0 | 8.0 | 6.5 | 12.7 | 9.3 | 355.6 |
| 400X200 | 406.4 | 216.3 | 4.8 | 4.0 | 8.0 | 6.5 | 12.7 | 8.2 | 355.6 |
| 450X400 | 457.2 | 406.4 | 4.8 | 4.8 | 8.0 | 8.0 | 14.3 | 12.7 | 381.0 |
| 450X350 | 457.2 | 355.6 | 4.8 | 4.8 | 8.0 | 8.0 | 14.3 | 11.1 | 381.0 |
| 450X300 | 457.2 | 318.5 | 4.8 | 4.5 | 8.0 | 6.5 | 14.3 | 10.3 | 381.0 |
| 450X250 | 457.2 | 267.4 | 3.8 | 4.0 | 8.0 | 6.5 | 14.3 | 9.3 | 381.0 |
| 500X450 | 508.0 | 457.2 | 5.5 | 4.8 | 9.5 | 8.0 | 15.1 | 14.3 | 508.0 |
| 500X400 | 508.0 | 406.4 | 5.5 | 4.8 | 9.5 | 8.0 | 15.1 | 12.7 | 508.0 |
| 500X350 | 508.0 | 355.6 | 5.5 | 4.8 | 9.5 | 8.0 | 15.1 | 11.1 | 508.0 |
| 500X300 | 508.0 | 318.5 | 5.5 | 4.5 | 9.5 | 6.5 | 15.1 | 10.3 | 508.0 |
| 550X500 | 558.8 | 508.0 | 5.5 | 5.5 | - | - | - | - | 508.0 |
| 550X450 | 558.8 | 457.2 | 5.5 | 4.8 | - | - | - | - | 508.0 |
| 550X400 | 558.8 | 406.4 | 5.5 | 4.8 | - | - | - | - | 508.0 |
| 600X550 | 609.6 | 558.8 | 6.4 | 5.5 | - | - | - | - | 508.0 |
| 600X500 | 609.6 | 508.0 | 6.4 | 5.5 | - | - | - | - | 508.0 |
| 600X450 | 609.6 | 457.2 | 6.4 | 4.8 | - | - | - | - | 508.0 |
| 750X600 | 762.0 | 609.6 | 7.9 | 6.4 | - | - | - | - | 609.6 |
[ 7.9T, STD, X-S Product specification ]
KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)
| Nominal Pipe Size |
Outside Diameter | Wall Thickness | End to End H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| OD1 | OD2 | 7.9T | STD | X-S | |||||
| T1 | T2 | T1 | T2 | T1 | T2 | ||||
| 400X350 | 406.4 | 355.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 355.6 |
| 450X400 | 457.2 | 406.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 381.0 |
| 450X350 | 457.2 | 355.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 381.0 |
| 500X450 | 508.0 | 457.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 500X400 | 508.0 | 406.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 500X350 | 508.0 | 355.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 550X500 | 558.8 | 508.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 550X450 | 558.8 | 457.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 550X400 | 558.8 | 406.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 550X350 | 558.8 | 355.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 600X550 | 609.6 | 558.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 600X500 | 609.6 | 508.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 600X450 | 609.6 | 457.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 600X400 | 609.6 | 406.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 508.0 |
| 650X600 | 660.4 | 609.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 650X550 | 660.4 | 558.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 650X500 | 660.4 | 508.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 650X450 | 660.4 | 457.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 700X650 | 711.2 | 660.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 700X600 | 711.2 | 609.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 700X550 | 711.2 | 558.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 700X500 | 711.2 | 508.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 750X700 | 762.0 | 711.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 750X650 | 762.0 | 660.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 750X600 | 762.0 | 609.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 750X550 | 762.0 | 558.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 800X750 | 812.8 | 762.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 800X700 | 812.8 | 711.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 800X650 | 812.8 | 660.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 800X600 | 812.8 | 609.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 850X800 | 863.6 | 812.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 850X750 | 863.6 | 762.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 850X700 | 863.6 | 711.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 850X650 | 863.6 | 660.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 900X850 | 914.4 | 863.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 900X800 | 914.4 | 812.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 900X750 | 914.4 | 762.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 900X700 | 914.4 | 711.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 950X900 | 965.2 | 914.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 950X850 | 965.2 | 863.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 950X800 | 965.2 | 812.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 950X750 | 965.2 | 762.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1000X950 | 1016.0 | 965.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1000X900 | 1016.0 | 914.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1000X850 | 1016.0 | 863.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1000X800 | 1016.0 | 812.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1050X1000 | 1066.8 | 1016.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1050X950 | 1066.8 | 965.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1050X900 | 1066.8 | 914.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1050X850 | 1066.8 | 863.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1100X1050 | 1117.6 | 1066.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1100X1000 | 1117.6 | 1016.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1100X950 | 1117.6 | 965.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1100X900 | 1117.6 | 914.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 609.6 |
| 1150X1100 | 1168.4 | 1117.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1150X1050 | 1168.4 | 1066.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1150X1000 | 1168.4 | 1016.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1150X950 | 1168.4 | 965.2 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1200X1150 | 1219.2 | 1168.4 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1200X1100 | 1219.2 | 1117.6 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1200X1050 | 1219.2 | 1066.8 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
| 1200X1000 | 1219.2 | 1016.0 | 7.9 | 7.9 | 9.5 | 9.5 | 12.7 | 12.7 | 711.2 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
