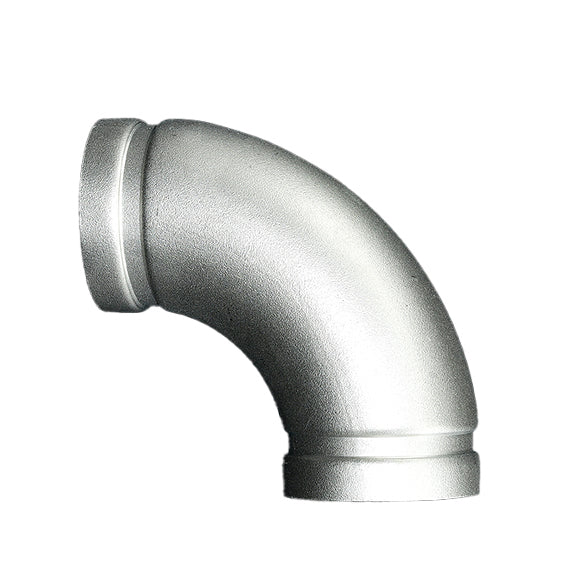

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- 90/45 Degree, 2.5/11.25 Degree
- Material: A312 TP304/L, TP316/L, STS304/L, STS316/L (S10S, S20S)
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

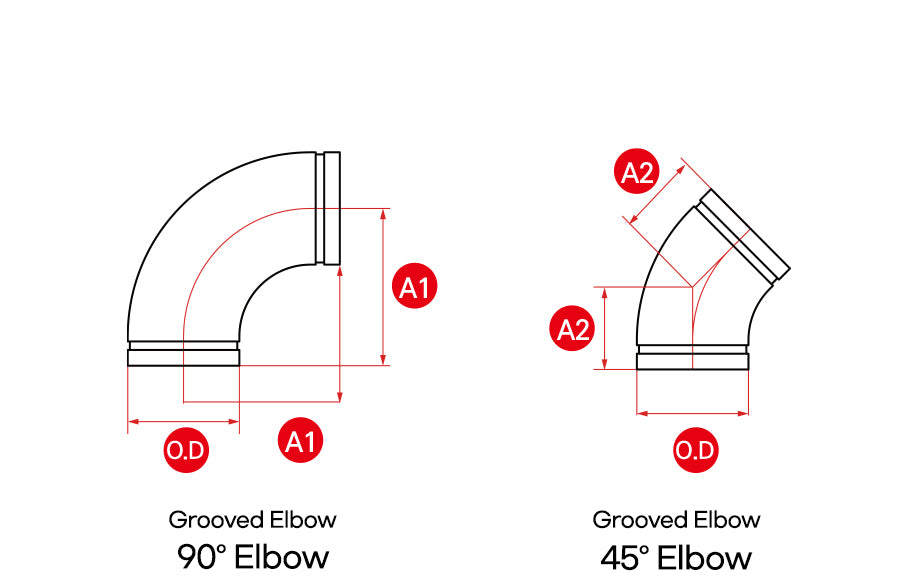

[ Product specification ]
| Nominal Size DN Inch |
Pipe O.D (mm) |
Wall Thick T (mm) |
||||
|---|---|---|---|---|---|---|
| 90° Elbow | 45° Elbow | |||||
| A1 (mm) |
Weight (Kg) |
A2 (mm) |
Weight (Kg) |
|||
| 40 1.1/2 |
48.6 | 2.8 | 77 | 0.4 | 47 | 0.3 |
| 50 2 |
60.5 | 2.8 | 94 | 0.6 | 54 | 0.3 |
| 65 | 76.3 | 3 | 110 | 0.9 | 60 | 0.5 |
| 2.1/2 | 73.0 | 3 | 110 | 0.9 | 60 | 0.5 |
| 80 3 |
89.1 | 3 | 129 | 1.3 | 71 | 0.7 |
| 100 4 |
114.3 | 3 | 160 | 2.1 | 84 | 1.1 |
| 125 | 139.8 | 3.4 | 191 | 3.5 | 99 | 1.8 |
| 5 | 141.3 | 3.4 | 191 | 3.5 | 99 | 1.8 |
| 150 | 165.2 | 3.4 | 229 | 4.9 | 115 | 2.5 |
| 6 | 168.3 | 3.4 | 229 | 4.9 | 115 | 2.5 |
| 200 | 216.3 | 4 | 305 | 10.1 | 150 | 5 |
| 8 | 219.1 | 4 | 305 | 10.1 | 150 | 5 |
| 250 | 267.4 | 4 | 381 | 15.7 | 181 | 7.5 |
| 10 | 273.0 | 4 | 381 | 15.7 | 181 | 7.5 |
| 300 | 318.5 | 4.5 | 457 | 25.3 | 219 | 12.1 |
| 12 | 323.9 | 4.5 | 457 | 25.3 | 219 | 12.1 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
