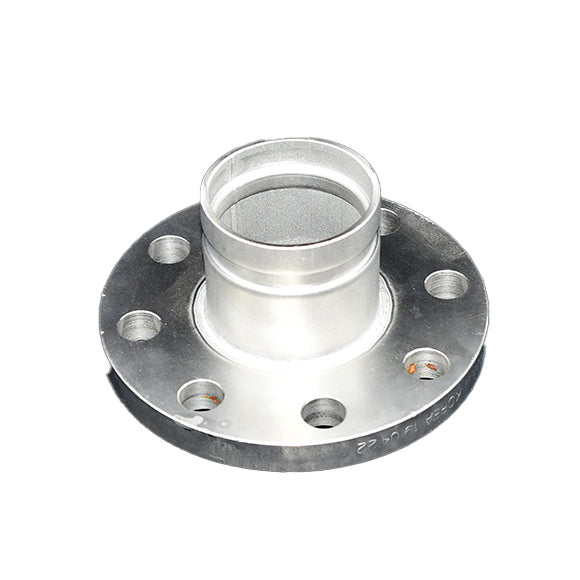

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.
- Grooved Outlet
- Material:STS304 (S10S, S20S)
It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

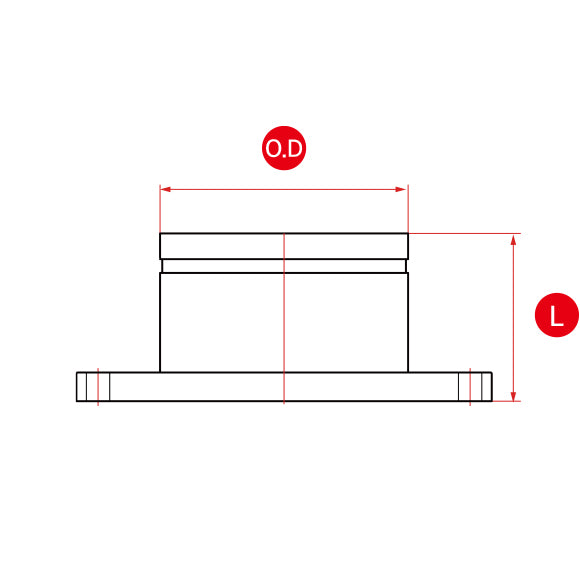

[ Product specification ]
| Nominal Size (A, inch) |
Outside Dia OD (mm) |
L (mm) |
Wall Thick T (mm) |
Weight (Kg) |
|---|---|---|---|---|
| 40 1.1/2 |
48.6 | 75 | 2.8 | 1.7 |
| 50 2 |
60.5 | 80 | 2.8 | 2.0 |
| 65 | 76.3 | 85 | 3.0 | 2.8 |
| 2.1/2 | 73.0 | 85 | 3.0 | 2.8 |
| 80 3 |
89.1 | 85 | 3.0 | 2.9 |
| 100 4 |
114.3 | 90 | 3.0 | 3.4 |
| 125 | 139.8 | 95 | 3.4 | 5.1 |
| 5 | 141.3 | 95 | 3.4 | 5.1 |
| 150 | 165.2 | 100 | 3.4 | 7.0 |
| 6 | 168.3 | 100 | 3.4 | 7.0 |
| 200 | 216.3 | 115 | 4.0 | 9.4 |
| 8 | 219.1 | 115 | 4.0 | 9.4 |
| 250 | 267.4 | 120 | 4.0 | 13.0 |
| 10 | 273.0 | 120 | 4.0 | 13.0 |
| 300 | 318.5 | 120 | 4.5 | 14.3 |
| 12 | 323.9 | 120 | 4.5 | 14.3 |
| 350 14 |
355.6 | 190 | 4.8 | 24.1 |
| 400 16 |
406.4 | 220 | 4.8 | 37.9 |
| 450 18 |
457.2 | 225 | 4.8 | 47.4 |
| 500 20 |
508.0 | 260 | 5.5 | 55.7 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
