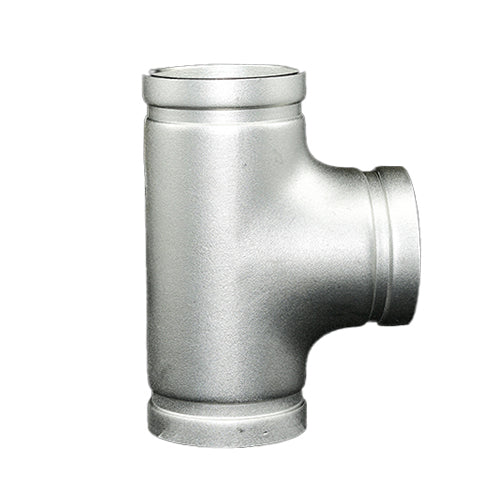

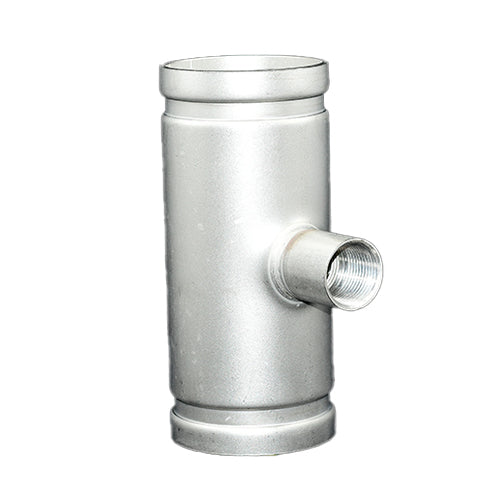

It is a grooved processed fitting product that is completely fastened to the grooved joint, and when epoxy is painted, it can be used semi-permanently to increase stability.

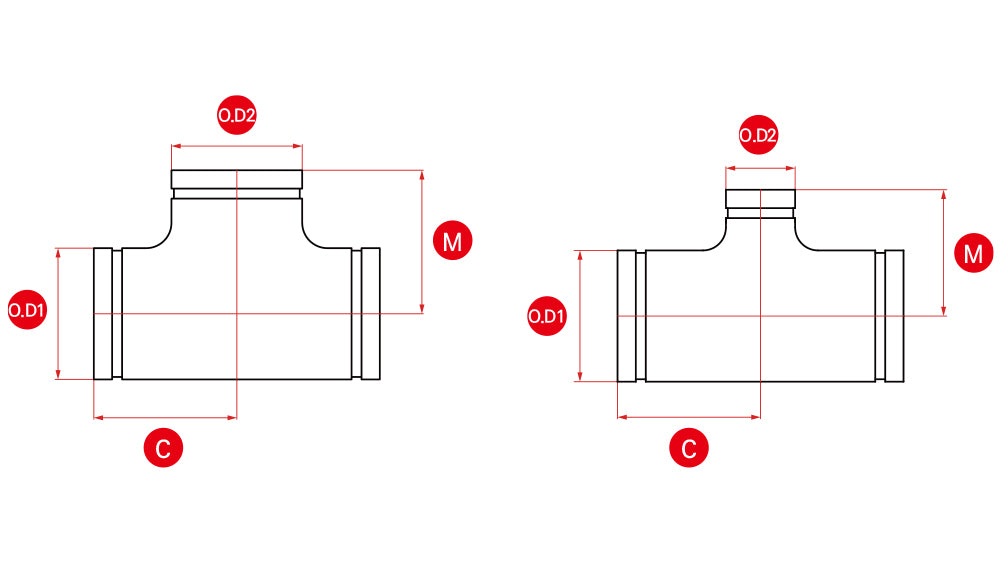

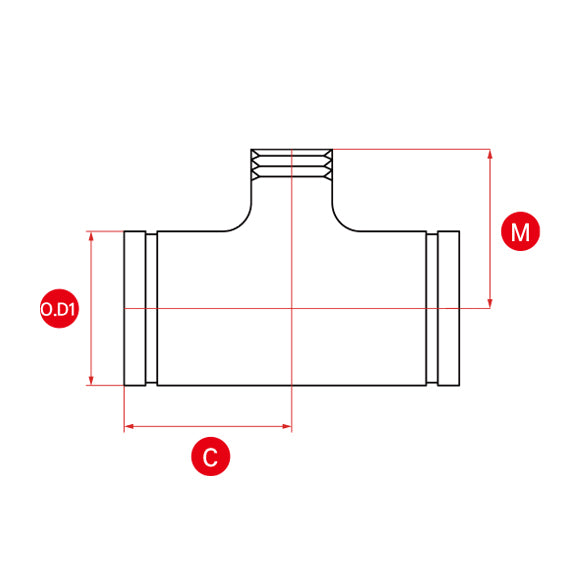

[ Grooved Type Product specification ]
| Nominal Size DN inch |
Center to End |
RUN |
Outlet |
| C (mm) |
M (mm) |
Outside Dia OD1 (mm) |
Wall Thick T1 (mm) |
Outside Dia OD2 (mm) |
Wall Thick T2 (mm) |
Weight(Kg) |
50x50
2x2 |
81.0 |
81.0 |
60.5 |
2.8 |
60.5 |
2.8 |
0.9 |
| 65x50 |
94.0 |
90.0 |
76.3 |
3.0 |
60.5 |
2.8 |
1.2 |
| 2.1x2 |
94.0 |
90.0 |
73.0 |
3.0 |
60.5 |
2.8 |
1.2 |
| 65x65 |
94.0 |
94.0 |
76.3 |
3.0 |
76.3 |
3.0 |
1.3 |
| 2.1/2x2.1/2 |
94.0 |
94.0 |
73.0 |
3.0 |
73.0 |
3.0 |
1.3 |
80x50
3x2 |
101.0 |
93.0 |
88.9 |
3.0 |
60.5 |
2.8 |
1.5 |
| 80x65 |
101.0 |
98.0 |
89.1 |
3.0 |
76.3 |
3.0 |
1.6 |
| 3x2.1/2 |
101.0 |
94.0 |
89.1 |
3.0 |
73.0 |
3.0 |
1.6 |
80x80
3x3 |
101.0 |
101.0 |
89.1 |
3.0 |
89.1 |
3.0 |
1.7 |
100x50
4x2 |
125.0 |
110.0 |
114.3 |
3.0 |
60.5 |
2.8 |
2.3 |
| 100x65 |
125.0 |
118.0 |
114.3 |
3.0 |
76.3 |
3.0 |
2.4 |
| 4x2.1/2 |
125.0 |
118.0 |
114.3 |
3.0 |
73.0 |
3.0 |
2.4 |
100x80
4x3 |
125.0 |
121.0 |
114.3 |
3.0 |
89.1 |
3.0 |
2.5 |
100x100
4x4 |
125.0 |
125.0 |
114.3 |
3.0 |
114.3 |
3.0 |
2.6 |
| 125x65 |
123.8 |
116.0 |
139.8 |
3.4 |
76.3 |
3.0 |
3.7 |
| 5x2.1/2 |
123.8 |
116.0 |
141.3 |
3.4 |
73.0 |
3.0 |
3.7 |
| 125x80 |
123.8 |
120.0 |
139.8 |
3.4 |
89.1 |
3.0 |
3.7 |
| 5x3 |
123.8 |
120.0 |
141.3 |
3.4 |
89.1 |
3.0 |
3.7 |
| 125x100 |
123.8 |
124.0 |
139.8 |
3.4 |
114.3 |
3.0 |
3.9 |
| 5x4 |
123.8 |
124.0 |
141.3 |
3.4 |
114.3 |
3.0 |
3.9 |
| 125x125 |
123.8 |
125.0 |
139.8 |
3.4 |
139.8 |
3.4 |
4.0 |
| 5x5 |
123.8 |
124.0 |
141.3 |
3.4 |
141.3 |
3.4 |
4.2 |
| 150x80 |
142.9 |
132.0 |
165.2 |
3.4 |
89.1 |
3.0 |
4.9 |
| 6x3 |
142.9 |
132.0 |
168.3 |
3.4 |
89.1 |
3.0 |
4.9 |
| 150x100 |
142.9 |
138.0 |
165.2 |
3.4 |
114.3 |
3.0 |
5.1 |
| 6x4 |
142.9 |
138.0 |
168.3 |
3.4 |
114.3 |
3.0 |
5.1 |
| 150x125 |
142.9 |
144.0 |
165.2 |
3.4 |
139.8 |
3.4 |
5.2 |
| 6x5 |
142.9 |
144.0 |
168.3 |
3.4 |
141.3 |
3.4 |
5.2 |
| 150x150 |
142.9 |
144.0 |
165.2 |
3.4 |
165.2 |
3.4 |
3.4 |
| 6x6 |
142.9 |
144.0 |
168.3 |
3.4 |
168.3 |
3.4 |
5.6 |
| 200x100 |
177.8 |
163.0 |
216.3 |
4.0 |
114.3 |
3.0 |
9.2 |
| 8x4 |
177.8 |
163.0 |
219.1 |
4.0 |
114.3 |
3.0 |
9.2 |
|
| Nominal Size DN inch |
Center to End |
RUN |
Outlet |
| C (mm) |
M (mm) |
Outside Dia OD1 (mm) |
Wall Thick T1 (mm) |
Outside Dia OD2 (mm) |
Wall Thick T2 (mm) |
Weight(Kg) |
| 200x125 |
177.8 |
163.0 |
216.3 |
4.0 |
139.8 |
3.4 |
9.5 |
| 8x5 |
177.8 |
163.0 |
219.1 |
4.0 |
141.3 |
3.4 |
9.5 |
| 200x150 |
177.8 |
168.0 |
216.3 |
4.0 |
165.2 |
3.4 |
12.3 |
| 8x6 |
177.8 |
168.0 |
219.1 |
4.0 |
168.3 |
3.4 |
12.3 |
| 200x200 |
177.8 |
180.0 |
216.3 |
4.0 |
216.3 |
4.0 |
13.6 |
| 8x8 |
177.8 |
180.0 |
219.1 |
4.0 |
219.1 |
4.0 |
13.6 |
| 250x125 |
215.9 |
215.9 |
267.4 |
4.0 |
139.8 |
3.4 |
13.4 |
| 10x5 |
215.9 |
215.9 |
273.0 |
4.0 |
141.3 |
3.4 |
13.4 |
| 250x150 |
215.9 |
215.9 |
267.4 |
4.0 |
165.2 |
3.4 |
13.7 |
| 10x6 |
215.9 |
215.9 |
273.0 |
4.0 |
168.3 |
3.4 |
13.7 |
| 250x200 |
215.9 |
215.9 |
267.4 |
4.0 |
216.3 |
4.0 |
14.6 |
| 10x8 |
215.9 |
215.9 |
273.0 |
4.0 |
219.1 |
4.0 |
14.6 |
| 250x250 |
215.9 |
215.9 |
267.4 |
4.0 |
267.4 |
4.0 |
15.4 |
| 10x10 |
215.9 |
215.9 |
273.0 |
4.0 |
273.0 |
4.0 |
15.4 |
| 300x150 |
254.0 |
235.0 |
318.5 |
4.5 |
165.2 |
3.4 |
20.6 |
| 12x6 |
254.0 |
235.0 |
323.9 |
4.5 |
168.3 |
3.4 |
20.6 |
| 300x200 |
254.0 |
254.0 |
318.5 |
4.5 |
216.3 |
4.0 |
21.4 |
| 12x8 |
254.0 |
254.0 |
323.9 |
4.5 |
219.1 |
4.0 |
21.4 |
| 300x250 |
254.0 |
254.0 |
318.5 |
4.5 |
267.4 |
4.5 |
22.3 |
| 12x10 |
254.0 |
254.0 |
323.9 |
4.5 |
273.0 |
4.5 |
22.3 |
| 300x300 |
254.0 |
254.0 |
318.5 |
4.5 |
318.5 |
4.5 |
23.6 |
| 12x12 |
254.0 |
254.0 |
323.9 |
4.5 |
323.9 |
4.5 |
23.6 |
| 350x250 |
279.4 |
268.0 |
355.6 |
4.8 |
267.4 |
4.2 |
24.7 |
| 14x10 |
279.4 |
268.0 |
355.6 |
4.8 |
273.0 |
4.2 |
24.7 |
| 500x450 |
381.0 |
379.0 |
508.0 |
5.5 |
457.2 |
4.8 |
57.0 |
|
※ Contact us special sizes.(ANSI)
