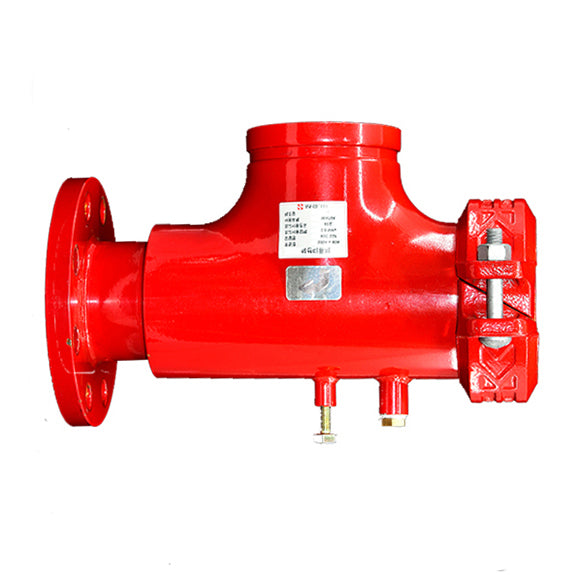

Suction Diffuser

The only steel pipe valve developed by our company in Korea.
It is a very lightweight, earthquake-resistant, durable, and corrosion-resistant valve.

Body Material : WPB, SPP, SPPS250, Stainless steel
Gasket Material : EPDM

Product specification
Video
Data Download

It is the only steel pipe valve developed by our company in Korea and is a valve product with very good weight reduction, earthquake resistance, durability, and corrosion resistance.

Characteristics of Steel Pipe Valve
Safety	1) There is no risk of leakage because the structure is dense through molding, not casting.
	2) Compared to casting, it is safe because there is no material defect.
	3) As it is made of steel, it is more resistant to stratification than cast iron, so there is less risk of damage.
Economic feasibility	1) The wall thickness is thin and light in weight, so it is easy to handle and the construction time is reduced.
Economic feasibility	2) It is highly competitive in price by using existing government subsidiaries.
Handling	1) The entrance/exit shape can be applied in various ways, such as flanges and grooves.
	2) There is no limit to the application of the flange specification.
	3) Because the cap connection is joint, it is easy to disassemble and assemble.
	4) The cap gasket can be reused after disassembly.

[ Product specifications ]

Applicable Fluid		Water
Applicable Inlet Press.	For 10K	□ Max. 10kg/ ㎠
Applicable Inlet Press.	For 20K	□ Max. 20kg/ ㎠
Applicable Temp.(Max.)		Water: 110 ℃
Hydrostatic Test	For 10K	□ Max. 15kg/ ㎠
Hydrostatic Test	For 20K	□ Max. 30kg/ ㎠
End Connection	ASC-1FF	KS 10K FF(50~250A)
	ASC-1FF	KS 10K RF(300~500A)
	ASC-2FF	KS 20K RF Flanged
	ASC-1GF, 2GF	In x Out: Grooved x Flanged
	ASC-1GG, 2GG	In x Out: Grooved x Grooved

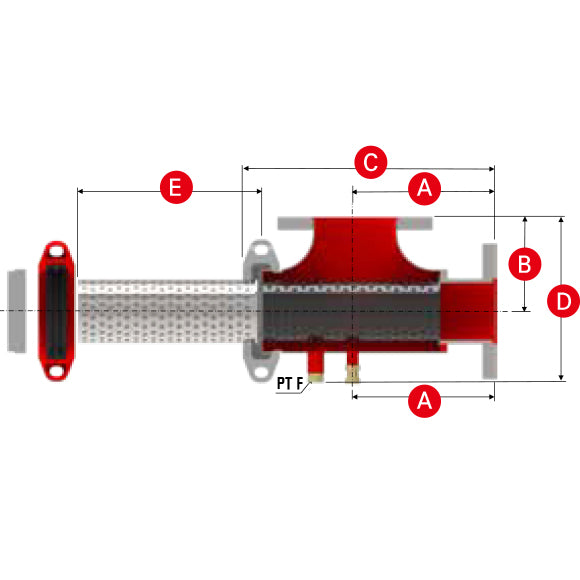

Size (Out x In) DN Inch	Dimension
	A		B		C	D	E(When cleaning)	Drain
	Flanged	Grooved	Flanged	Grooved	C	D	E(When cleaning)	PT F
50x40 2x1.1/2	140	136	85	81	250	160	155	3/8"
50x50 2x2	160	155	94	90	282	176	181
65x50 2.1/2x2	160	155	98	94	282	180	181
65x65 2.1/2x2.1/2	165	161	102	98	294	192	194
80x50 3x2	165	161	105	101	294	195	194
80x65 3x2.1/2	165	161	105	101	294	195	194
80x80 3x3	190	186	125	121	345	225	243
100x50 4x2	190	186	131	125	345	232	243
100x65 4x2.1/2
100x80 4x3
100x100 4x4	220	214	145	139	395	268	283	1/2"
125x65 5x2.1/2	220	214	154	146	395	275	283
125x80 5x3
125x100 5x4
125x125 5x5	240	234	166	158	435	298	319
150x80 6x3	240	234	173	165	435	305	319
150x100 6x4
150x125 6x5
150x150 6x6	280	272	204	196	520	366	397
200x100 8x4	280	272	213	205	520	375	397
200x125 8x5
200x150 8x6
200x200 8x8	315	307	238	230	592	438	469	1"
250x125 10x5	315	307	250	242	592	450	469
250x150 10x6
250x200 10x8
250x250 10x10	360	352	276	268	675	506	541
300x150 12x6	360	352	287	279	675	515	541
300x200 12x8
300x250 12x10
300x300 12x12	370	361	288	280	700	535	561
350x250 14x10	370	361	298	290	700	545	561
350x300 14x12	370	361	298	290	700	545	561
350x350 14x14	395	386	323	315	750	595	611
400x300 16x12
400x350 16x14
400x400 16x16	435	425	338	330	816	647	676
450x350 18x14	435	425	351	343	816	660	676
450x400 18x16	435	425	351	343	816	660	676
450x450 18x18	475	465	376	368	896	702	750
500x400 20x16	475	465	389	380	896	715	750
500x450 20x18	475	465	389	380	896	715	750
500x500 20x20	545	536	442	432	1020	822	851
