Tee

Tee

SPP/SGP
7.9T, STD, X-S
Sch40, Sch80, Sch120, Sch160

It is a steel pipe piping material product for welding.

  • KS B 1543 / JIS B 2312 / JIS B 2313
  • Material: Carbon Steel Pipe (A234 WPB, SPP, SPPS250)

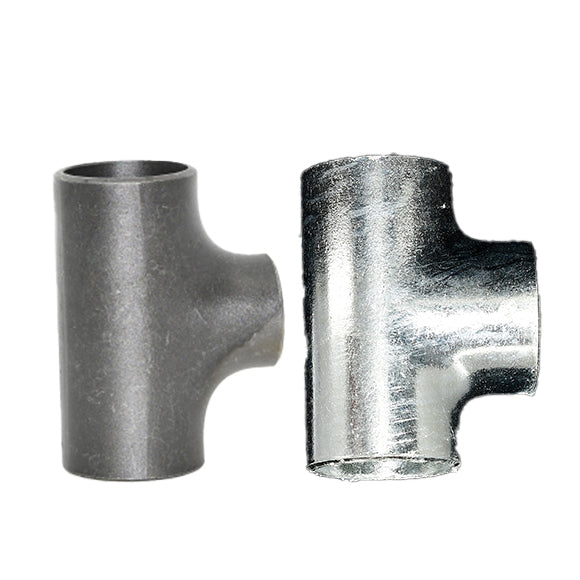

  • Type: Black Tee/White Tee

Product specification

It is a steel pipe piping material product for welding.

[ SPP/SGP Product specification ]

KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)

Nominal
Pipe Size		 Run Outlet Center to End
Outside Diameter
OD1		 Inside Diameter
ID1		 Wall Thickness
T1		 Outside Diameter
OD2		 Inside Diameter
ID2		 Wall Thickness
T2		 C M
15X15 21.7 16.1 2.8 21.7 16.1 2.8 25.4 25.4
20X20 27.2 21.6 2.8 27.2 21.6 2.8 28.6 28.6
20X15 27.2 21.6 2.8 21.7 16.1 2.8 28.6 28.6
25X25 34.0 27.6 3.2 34.0 27.6 3.2 38.1 38.1
25X20 34.0 27.6 3.2 27.2 21.6 2.8 38.1 38.1
25X15 34.0 27.6 3.2 21.7 16.1 2.8 38.1 38.1
32X32 42.7 35.7 3.5 42.7 35.7 3.5 47.6 47.6
32X25 42.7 35.7 3.5 34.0 27.6 3.2 47.6 47.6
32X20 42.7 35.7 3.5 27.2 21.6 2.8 47.6 47.6
32X15 42.7 35.7 3.5 21.7 16.1 2.8 47.6 47.6
40X40 48.6 41.6 3.5 48.6 41.6 3.5 57.2 57.2
40X32 48.6 41.6 3.5 42.7 35.7 3.5 57.2 57.2
40X25 48.6 41.6 3.5 34.0 27.6 3.2 57.2 57.2
40X20 48.6 41.6 3.5 27.2 21.6 2.8 57.2 57.2
40X15 48.6 41.6 3.5 21.7 16.1 2.8 57.2 57.2
50X50 60.5 52.9 3.8 60.5 52.9 3.8 63.5 63.5
50X40 60.5 52.9 3.8 48.6 41.6 3.5 63.5 60.3
50X32 60.5 52.9 3.8 42.7 35.7 3.5 63.5 57.2
50X25 60.5 52.9 3.8 34.0 27.6 3.2 63.5 50.8
50X20 60.5 52.9 3.8 27.2 21.6 2.8 63.5 44.5
65X65 76.3 67.9 4.2 76.3 67.9 4.2 76.2 76.2
65X50 76.3 67.9 4.2 60.5 52.9 3.8 76.2 69.9
65X40 76.3 67.9 4.2 48.6 41.6 3.5 76.2 66.7
65X32 76.3 67.9 4.2 42.7 35.7 3.5 76.2 63.5
65X25 76.3 67.9 4.2 34.0 27.6 3.2 76.2 57.2
80X80 89.1 80.7 4.2 89.1 80.7 4.2 85.7 85.7
80X65 89.1 80.7 4.2 76.3 67.9 4.2 85.7 82.6
80X50 89.1 80.7 4.2 60.5 52.9 3.8 85.7 76.2
80X40 89.1 80.7 4.2 48.6 41.6 3.5 85.7 73.0
80X32 89.1 80.7 4.2 42.7 35.7 3.5 85.7 69.9
90X90 101.6 93.2 4.2 101.6 93.2 4.2 95.3 95.3
90X80 101.6 93.2 4.2 89.1 80.7 4.2 95.3 92.1
90X65 101.6 93.2 4.2 76.3 67.9 4.2 95.3 88.9
90X50 101.6 93.2 4.2 60.5 52.9 3.8 95.3 82.6
90X40 101.6 93.2 4.2 48.6 41.6 3.5 95.3 79.4
100X100 114.3 105.3 4.5 114.3 105.3 4.5 104.8 104.8
100X90 114.3 105.3 4.5 101.6 93.2 4.2 104.8 101.6
100X80 114.3 105.3 4.5 89.1 80.7 4.2 104.8 98.4
100X65 114.3 105.3 4.5 76.3 67.9 4.2 104.8 95.3
100X50 114.3 105.3 4.5 60.5 52.9 3.8 104.8 88.9
100X40 114.3 105.3 4.5 48.6 41.6 3.5 104.8 85.7
125X125 139.8 130.8 4.5 139.8 130.8 4.5 123.8 123.8
125X100 139.8 130.8 4.5 114.3 105.3 4.5 123.8 117.5
125X90 139.8 130.8 4.5 101.6 93.2 4.2 123.8 114.3
125X80 139.8 130.8 4.5 89.1 80.7 4.2 123.8 111.1
125X65 139.8 130.8 4.5 76.3 67.9 4.2 123.8 108.0
125X50 139.8 130.8 4.5 60.5 52.9 3.8 123.8 104.8
150X150 165.2 155.2 5.0 165.2 155.2 5.0 142.9 142.9
150X125 165.2 155.2 5.0 139.8 130.8 4.5 142.9 136.5
150X100 165.2 155.2 5.0 114.3 105.3 4.5 142.9 130.2
150X90 165.2 155.2 5.0 101.6 93.2 4.2 142.9 127.0
150X80 165.2 155.2 5.0 89.1 80.7 4.2 142.9 123.8
150X65 165.2 155.2 5.0 76.3 67.9 4.2 142.9 120.7
200X200 216.3 204.7 5.8 216.3 204.7 5.8 177.8 177.8
200X150 216.3 204.7 5.8 165.2 155.2 5.0 177.8 168.3
200X125 216.3 204.7 5.8 139.8 130.8 4.5 177.8 161.9
200X100 216.3 204.7 5.8 114.3 105.3 4.5 177.8 155.6
200X90 216.3 204.7 5.8 101.6 93.2 4.2 177.8 152.4
250X250 267.4 254.2 6.6 267.2 254.2 6.6 215.9 215.9
250X200 267.4 254.2 6.6 216.3 204.7 5.8 215.9 203.2
250X150 267.4 254.2 6.6 165.2 155.2 5.0 215.9 193.7
250X125 267.4 254.2 6.6 139.8 130.8 4.5 215.9 190.5
250X100 267.4 254.2 6.6 114.3 105.3 4.5 215.9 184.2
300X300 318.5 304.7 6.9 318.5 304.7 6.9 254.0 254.0
300X250 318.5 304.7 6.9 267.4 254.2 6.6 254.0 241.3
300X200 318.5 304.7 6.9 216.3 204.7 5.8 254.0 228.6
300X150 318.5 304.7 6.9 165.2 155.2 5.0 254.0 219.1
300X125 318.5 304.7 6.9 139.8 130.8 4.5 254.0 215.9
350X350 355.6 339.8 7.9 355.6 339.8 7.9 279.4 279.4
350X300 355.6 339.8 7.9 318.5 304.7 6.9 279.4 269.9
350X250 355.6 339.8 7.9 267.4 254.2 6.6 279.4 257.2
350X200 355.6 339.8 7.9 216.3 204.7 5.8 279.4 247.7
350X150 355.6 339.8 7.9 165.2 155.2 5.0 279.4 238.1
400X400 406.4 390.6 7.9 406.4 390.6 7.9 304.8 304.8
400X350 406.4 390.6 7.9 355.6 339.8 7.9 304.8 304.8
400X300 406.4 390.6 7.9 318.5 304.7 6.9 304.8 295.3
400X250 406.4 390.6 7.9 267.4 254.2 6.6 304.8 282.6
400X200 406.4 390.6 7.9 216.3 204.7 5.8 304.8 273.1
400X150 406.4 390.6 7.9 165.2 155.2 5.0 304.8 263.5
450X450 457.2 441.4 7.9 457.2 441.4 7.9 342.9 342.9
450X400 457.2 441.4 7.9 406.4 390.6 7.9 342.9 330.2
450X350 457.2 441.4 7.9 355.6 339.8 7.9 342.9 330.2
450X300 457.2 441.4 7.9 318.5 304.7 6.9 342.9 320.7
450X250 457.2 441.4 7.9 267.4 254.2 6.6 342.9 308.0
500X500 508.0 492.2 7.9 508.0 492.2 7.9 381.0 381.0
500X450 508.0 492.2 7.9 457.2 441.4 7.9 381.0 368.3
500X400 508.0 492.2 7.9 406.4 390.6 7.9 381.0 355.6
500X350 508.0 492.2 7.9 355.6 339.8 7.9 381.0 355.6
500X300 508.0 492.2 7.9 318.5 304.8 6.9 381.0 346.1
500X250 508.0 492.2 7.9 267.4 254.2 6.6 381.0 333.4
500X200 508.0 492.2 7.9 216.3 204.7 5.8 381.0 323.9

[ 7.9T, STD, X-S Product specification ]

KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)

Nominal
Pipe Size		 Outside Diameter Wall Thickness Center to End
OD1 OD2 7.9T STD X-S C M
T1 T2 T1 T2 T1 T2
350X350 355.6 355.6 7.9 7.9 9.5 9.5 12.7 12.7 279.4 279.4
400X400 406.4 406.4 7.9 7.9 9.5 9.5 12.7 12.7 304.8 304.8
400X350 406.4 355.6 7.9 7.9 9.5 9.5 12.7 12.7 304.8 304.8
400X300 406.4 318.5 7.9 7.9 9.5 9.5 12.7 12.7 304.8 295.3
450X450 457.2 457.2 7.9 7.9 9.5 9.5 12.7 12.7 342.9 342.9
450X400 457.2 406.4 7.9 7.9 9.5 9.5 12.7 12.7 342.9 330.2
450X350 457.2 355.6 7.9 7.9 9.5 9.5 12.7 12.7 342.9 330.2
450X300 457.2 318.5 7.9 7.9 9.5 9.5 12.7 12.7 342.9 320.7
500X500 508.0 508.0 7.9 7.9 9.5 9.5 12.7 12.7 381.0 381.0
500X450 508.0 457.2 7.9 7.9 9.5 9.5 12.7 12.7 381.0 368.3
500X400 508.0 406.4 7.9 7.9 9.5 9.5 12.7 12.7 381.0 355.6
500X350 508.0 355.6 7.9 7.9 9.5 9.5 12.7 12.7 381.0 355.6
500X300 508.0 318.5 7.9 7.9 9.5 9.5 12.7 12.7 381.0 346.1
550X550 558.8 558.8 7.9 7.9 9.5 9.5 12.7 12.7 419.1 419.1
550X500 558.8 508.0 7.9 7.9 9.5 9.5 12.7 12.7 419.1 406.4
550X450 558.8 457.2 7.9 7.9 9.5 9.5 12.7 12.7 419.1 393.7
550X400 558.8 406.4 7.9 7.9 9.5 9.5 12.7 12.7 419.1 381.0
600X600 609.6 609.6 7.9 7.9 9.5 9.5 12.7 12.7 431.8 431.8
600X550 609.6 558.8 7.9 7.9 9.5 9.5 12.7 12.7 431.8 431.8
600X500 609.6 508.0 7.9 7.9 9.5 9.5 12.7 12.7 431.8 431.8
600X450 609.6 457.2 7.9 7.9 9.5 9.5 12.7 12.7 431.8 419.1
650X650 660.4 660.4 7.9 7.9 9.5 9.5 12.7 12.7 495.3 495.3
650X600 660.4 609.6 7.9 7.9 9.5 9.5 12.7 12.7 495.3 482.6
650X550 660.4 558.8 7.9 7.9 9.5 9.5 12.7 12.7 495.3 469.9
650X500 660.4 508.0 7.9 7.9 9.5 9.5 12.7 12.7 495.3 457.2
700X700 711.2 711.2 7.9 7.9 9.5 9.5 12.7 12.7 520.7 520.7
700X650 711.2 660.4 7.9 7.9 9.5 9.5 12.7 12.7 520.7 520.7
700X600 711.2 609.6 7.9 7.9 9.5 9.5 12.7 12.7 520.7 508.0
700X550 711.2 558.8 7.9 7.9 9.5 9.5 12.7 12.7 520.7 495.3
750X750 762.0 762.0 7.9 7.9 9.5 9.5 12.7 12.7 558.8 558.8
750X700 762.0 711.2 7.9 7.9 9.5 9.5 12.7 12.7 558.8 546.1
750X650 762.0 660.4 7.9 7.9 9.5 9.5 12.7 12.7 558.8 546.1
750X600 762.0 609.6 7.9 7.9 9.5 9.5 12.7 12.7 558.8 533.4
800X800 812.8 812.8 7.9 7.9 9.5 9.5 12.7 12.7 596.9 596.9
800X750 812.8 762.0 7.9 7.9 9.5 9.5 12.7 12.7 596.9 584.2
800X700 812.8 711.2 7.9 7.9 9.5 9.5 12.7 12.7 596.9 571.5
800X650 812.8 660.4 7.9 7.9 9.5 9.5 12.7 12.7 596.9 571.5
850X850 863.6 863.6 7.9 7.9 9.5 9.5 12.7 12.7 635.0 635.0
850X800 863.6 812.8 7.9 7.9 9.5 9.5 12.7 12.7 635.0 622.3
850X750 863.6 762.0 7.9 7.9 9.5 9.5 12.7 12.7 635.0 609.6
850X700 863.6 711.2 7.9 7.9 9.5 9.5 12.7 12.7 635.0 596.9
900X900 914.4 914.4 7.9 7.9 9.5 9.5 12.7 12.7 673.1 673.1
900X850 914.4 863.6 7.9 7.9 9.5 9.5 12.7 12.7 673.1 660.4
900X800 914.4 812.8 7.9 7.9 9.5 9.5 12.7 12.7 673.1 647.7
900X750 914.4 762.0 7.9 7.9 9.5 9.5 12.7 12.7 673.1 635.0
950X950 965.2 965.2 7.9 7.9 9.5 9.5 12.7 12.7 711.2 711.2
950X900 965.2 914.4 7.9 7.9 9.5 9.5 12.7 12.7 711.2 711.2
950X850 965.2 863.6 7.9 7.9 9.5 9.5 12.7 12.7 711.2 698.5
950X800 965.2 812.8 7.9 7.9 9.5 9.5 12.7 12.7 711.2 685.8
1000X1000 1016.0 1016.0 7.9 7.9 9.5 9.5 12.7 12.7 749.3 749.3
1000X950 1016.0 965.2 7.9 7.9 9.5 9.5 12.7 12.7 749.3 749.3
1000X900 1016.0 914.4 7.9 7.9 9.5 9.5 12.7 12.7 749.3 736.6
1000X850 1016.0 863.6 7.9 7.9 9.5 9.5 12.7 12.7 749.3 723.9
1050X1050 1066.8 1066.8 7.9 7.9 9.5 9.5 12.7 12.7 762.0 711.2
1050X1000 1066.8 1016.0 7.9 7.9 9.5 9.5 12.7 12.7 762.0 711.2
1050X950 1066.8 965.2 7.9 7.9 9.5 9.5 12.7 12.7 762.0 711.2
1050X900 1066.8 914.4 7.9 7.9 9.5 9.5 12.7 12.7 762.0 711.2
1100X1100 1117.6 1117.6 7.9 7.9 9.5 9.5 12.7 12.7 812.8 762.0
1100X1050 1117.6 1066.8 7.9 7.9 9.5 9.5 12.7 12.7 812.8 762.0
1100X1000 1117.6 1016.0 7.9 7.9 9.5 9.5 12.7 12.7 812.8 749.3
1100X950 1117.6 965.2 7.9 7.9 9.5 9.5 12.7 12.7 812.8 736.6
1150X1150 1168.4 1168.4 7.9 7.9 9.5 9.5 12.7 12.7 850.9 800.1
1150X1100 1168.4 1117.6 7.9 7.9 9.5 9.5 12.7 12.7 850.9 800.1
1150X1050 1168.4 1066.8 7.9 7.9 9.5 9.5 12.7 12.7 850.9 787.4
1150X1000 1168.4 1016.0 7.9 7.9 9.5 9.5 12.7 12.7 850.9 774.7
1200X1200 1219.2 1219.2 7.9 7.9 9.5 9.5 12.7 12.7 889.0 838.2
1200X1150 1219.2 1168.4 7.9 7.9 9.5 9.5 12.7 12.7 889.0 838.2
1200X1100 1219.2 1117.6 7.9 7.9 9.5 9.5 12.7 12.7 889.0 838.2
1200X1050 1219.2 1066.8 7.9 7.9 9.5 9.5 12.7 12.7 889.0 812.8

[Sch40, Sch80, Sch120, Sch160 Product specification ]

KS B 1543 / JIS B 2312 / JIS B 2313 (Unit : mm)

Nominal
Pipe Size		 Outside Diameter Wall Thickness T Center to End
OD1 OD2 Sch 40 Sch 80 Sch 120 Sch 160 C M
T1 T2 T1 T2 T1 T2 T1 T2
15X15 21.7 21.7 2.8 2.8 3.7 3.7 - - - - 25.4 25.4
20X20 27.2 27.2 2.9 2.9 3.9 3.9 - - - - 28.6 28.6
20X15 27.2 21.7 2.9 2.8 3.9 3.7 - - - - 28.6 28.6
25X25 34.0 34.0 3.4 3.4 4.5 4.5 - - - - 38.1 38.1
25X20 34.0 27.2 3.4 2.9 4.5 3.9 - - - - 38.1 38.1
25X15 34.0 21.7 3.4 2.8 4.5 3.7 - - - - 38.1 38.1
32X32 42.7 42.7 3.6 3.6 4.9 4.9 - - - - 47.6 47.6
32X25 42.7 34.0 3.6 3.4 4.9 4.5 - - - - 47.6 47.6
32X20 42.7 27.2 3.6 2.9 4.9 3.9 - - - - 47.6 47.6
32X15 42.7 21.7 3.6 2.8 4.9 3.7 - - - - 47.6 47.6
40X40 48.6 48.6 3.7 3.7 5.1 5.1 - - 7.1 7.1 57.2 57.2
40X32 48.6 42.7 3.7 3.6 5.1 4.9 - - - - 57.2 57.2
40X25 48.6 34.0 3.7 3.4 5.1 4.5 - - - - 57.2 57.2
40X20 48.6 27.2 3.7 2.9 5.1 3.9 - - - - 57.2 57.2
40X15 48.6 21.7 3.7 2.8 5.1 3.7 - - - - 57.2 57.2
50X50 60.5 60.5 3.9 3.9 5.5 5.5 - - 8.7 8.7 63.5 63.5
50X40 60.5 48.6 3.9 3.7 5.5 5.1 - - 8.7 7.1 63.5 60.3
50X32 60.5 42.7 3.9 3.6 5.5 4.9 - - - - 63.5 57.2
50X25 60.5 34.0 3.9 3.4 5.5 4.5 - - - - 63.5 50.8
50X20 60.5 27.2 3.9 2.9 5.5 3.9 - - - - 63.5 44.5
65X65 76.3 76.3 5.2 5.2 7.0 7.0 - - 9.5 9.5 76.2 76.2
65X50 76.3 60.5 5.2 3.9 7.0 5.5 - - 9.5 8.7 76.2 69.9
65X40 76.3 48.6 5.2 3.7 7.0 5.1 - - 9.5 7.1 76.2 66.7
65X32 76.3 42.7 5.2 3.6 7.0 4.9 - - - - 76.2 63.5
65X25 76.3 34.0 5.2 3.4 7.0 4.5 - - - - 76.2 57.2
80X80 89.1 89.1 5.5 5.5 7.6 7.6 - - 11.1 11.1 85.7 85.7
80X65 89.1 76.3 5.5 5.2 7.6 7.0 - - 11.1 9.5 85.7 82.6
80X50 89.1 60.5 5.5 3.9 7.6 5.5 - - 11.1 8.7 85.7 76.2
80X40 89.1 48.6 5.5 3.7 7.6 5.1 - - 11.1 7.1 85.7 73.0
80X32 89.1 42.7 5.5 3.6 7.6 4.9 - - - - 85.7 69.9
90X90 101.6 101.6 5.7 5.7 8.1 8.1 - - 12.7 12.7 95.3 95.3
90X80 101.6 89.1 5.7 5.5 8.1 7.6 - - 12.7 11.1 95.3 92.1
90X65 101.6 76.3 5.7 5.2 8.1 7.0 - - 12.7 9.5 95.3 88.9
90X50 101.6 60.5 5.7 3.9 8.1 5.5 - - 12.7 8.7 95.3 82.6
90X40 101.6 48.6 5.7 3.7 8.1 5.1 - - 12.7 7.1 95.3 79.4
100X100 114.3 114.3 6.0 6.0 8.6 8.6 11.1 11.1 13.5 13.5 104.8 104.8
100X90 114.3 101.6 6.0 5.7 8.6 8.1 - - 13.5 12.7 104.8 101.6
100X80 114.3 89.1 6.0 5.5 8.6 7.6 - - 13.5 11.1 104.8 98.4
100X65 114.3 76.3 6.0 5.2 8.6 7.0 - - 13.5 9.5 104.8 95.3
100X50 114.3 60.5 6.0 3.9 8.6 5.5 - - 13.5 8.7 104.8 88.9
100X40 114.3 48.6 6.0 3.7 8.6 5.1 - - 13.5 7.1 104.8 85.7
125X125 139.8 139.8 6.6 6.6 9.5 9.5 12.7 12.7 15.9 15.9 123.8 123.8
125X100 139.8 114.3 6.6 6.0 9.5 8.6 12.7 11.1 15.9 13.5 123.8 117.5
125X90 139.8 101.6 6.6 5.7 9.5 8.1 - - 15.9 12.7 123.8 114.3
125X80 139.8 89.1 6.6 5.5 9.5 7.6 - - 15.9 11.1 123.8 111.1
125X65 139.8 76.3 6.6 5.2 9.5 7.0 - - 15.9 9.5 123.8 108.0
125X50 139.8 60.5 6.6 3.9 9.5 5.5 - - 15.9 8.7 123.8 104.8
150X150 165.2 165.2 7.1 7.1 11.0 11.0 14.3 14.3 18.2 18.2 142.9 142.9
150X125 165.2 139.8 7.1 6.6 11.0 9.5 14.3 12.7 18.2 15.9 142.9 136.5
150X100 165.2 114.3 7.1 6.0 11.0 8.6 14.3 11.1 18.2 13.2 142.9 130.2
150X90 165.2 101.6 7.1 5.7 11.0 8.1 - - 18.2 12.7 142.9 127.0
150X80 165.2 89.1 7.1 5.5 11.0 7.6 - - 18.2 11.1 142.9 123.8
150X65 165.2 76.3 7.1 5.2 11.0 7.0 - - 18.2 9.5 142.9 120.7
200X200 216.3 216.3 8.2 8.2 12.7 12.7 18.2 18.2 23.0 23.0 177.8 177.8
200X150 216.3 165.2 8.2 7.1 12.7 11.0 18.2 14.3 23.0 18.2 177.8 168.3
200X125 216.3 139.8 8.2 6.6 12.7 9.5 18.2 12.7 23.0 15.9 177.8 161.9
200X100 216.3 114.3 8.2 6.0 12.7 8.6 18.2 11.1 23.0 13.5 177.8 155.6
200X90 216.3 101.6 8.2 5.7 12.7 8.1 - - 23.0 12.7 177.8 152.4
250X250 267.4 267.4 9.3 9.3 15.1 15.1 21.4 21.4 28.6 28.6 215.9 215.9
250X200 267.4 216.3 9.3 8.2 15.1 12.7 21.4 18.2 28.6 23.0 215.9 203.2
250X150 267.4 165.2 9.3 7.1 15.1 11.0 21.4 14.3 28.6 18.2 215.9 193.7
250X125 267.4 139.8 9.3 6.6 15.1 9.5 21.4 12.7 28.6 15.9 215.9 190.5
250X100 267.4 114.3 9.3 6.0 15.1 8.6 21.4 11.1 28.6 13.5 215.9 184.2
300X300 318.5 318.5 10.3 10.3 17.4 17.4 25.4 25.4 33.3 33.3 254.0 254.0
300X250 318.5 267.4 10.3 9.3 17.4 15.1 25.4 21.4 33.3 28.6 254.0 241.3
300X200 318.5 216.3 10.3 8.2 17.4 12.7 25.4 18.2 33.3 23.0 254.0 228.6
300X150 318.5 165.2 10.3 7.1 17.4 11.0 25.4 14.3 33.3 18.2 254.0 219.1
300X125 318.5 139.8 10.3 6.6 17.4 9.5 25.4 12.7 33.3 15.9 254.0 215.9
350X350 355.6 355.6 11.1 11.1 19.0 19.0 27.8 27.8 35.7 35.7 279.4 279.4
350X300 355.6 318.5 11.1 10.3 19.0 17.4 27.8 25.4 35.7 33.3 279.4 269.9
350X250 355.6 267.4 11.1 9.3 19.0 15.1 27.8 21.4 35.7 28.6 279.4 257.2
350X200 355.6 216.3 11.1 8.2 19.0 12.7 27.8 18.2 35.7 23.0 279.4 247.7
350X150 355.6 165.2 11.1 7.1 19.0 11.0 27.8 14.3 35.7 18.2 279.4 238.1
400X400 406.4 406.4 12.7 12.7 21.4 21.4 30.9 30.9 40.5 40.5 304.8 304.8
400X350 406.4 355.6 12.7 11.1 21.4 19.0 30.9 27.8 40.5 35.7 304.8 304.8
400X300 406.4 318.5 12.7 10.3 21.4 17.4 30.9 25.4 40.5 33.3 304.8 295.3
400X250 406.4 267.4 12.7 9.3 21.4 15.1 30.9 21.4 40.5 28.6 304.8 282.6
400X200 406.4 216.3 12.7 8.2 21.4 12.7 30.9 18.2 40.5 23.0 304.8 273.1
400X150 406.4 165.2 12.7 7.1 21.4 11.0 30.9 14.3 40.5 18.2 304.8 263.5
450X450 457.2 457.2 14.3 14.3 23.8 23.8 34.9 34.9 45.2 45.2 342.9 342.9
450X400 457.2 406.4 14.3 12.7 23.8 21.4 34.9 30.9 45.2 40.5 342.9 330.2
450X350 457.2 355.6 14.3 11.1 23.8 19.0 34.9 27.8 45.2 35.7 342.9 330.2
450X300 457.2 318.5 14.3 10.3 23.8 17.4 34.9 25.4 45.2 33.3 342.9 320.7
450X250 457.2 267.4 14.3 9.3 23.8 15.1 34.9 21.4 45.2 28.6 342.9 308.0
450X200 457.2 216.3 14.3 8.2 23.8 12.7 34.9 18.2 45.2 23.0 342.9 298.5
500X500 508.0 508.0 15.1 15.1 26.2 26.2 38.1 38.1 50.0 50.0 381.0 381.0
500X450 508.0 457.2 15.1 14.3 26.2 23.8 38.1 34.9 50.0 45.2 381.0 368.3
500X400 508.0 406.4 15.1 12.7 26.2 21.4 38.1 30.9 50.0 40.5 381.0 355.6
500X350 508.0 355.6 15.1 11.1 26.2 19.0 38.1 27.8 50.0 35.7 381.0 355.6
500X300 508.0 318.5 15.1 10.3 26.2 17.4 38.1 25.4 50.0 33.3 381.0 346.1
500X250 508.0 267.4 15.1 9.3 26.2 15.1 38.1 21.4 50.0 28.6 381.0 333.4
500X200 508.0 216.3 15.1 8.2 26.2 12.7 38.1 18.2 50.0 23.0 381.0 323.9
550X550 558.8 558.8 15.1 15.1 28.6 28.6 - - - - 419.1 419.1
550X500 558.8 508.0 15.1 15.1 28.6 26.2 - - - - 419.1 406.4
550X450 558.8 457.2 15.1 14.3 28.6 23.8 - - - - 419.1 393.7
550X400 558.8 406.4 15.1 12.7 28.6 21.4 - - - - 419.1 381.0
600X600 609.6 609.6 17.4 17.4 31.0 31.0 - - - - 431.8 431.8
600X550 609.6 558.8 17.4 15.1 31.0 28.6 - - - - 431.8 431.8
600X500 609.6 508.0 17.4 15.1 31.0 26.2 - - - - 431.8 431.8
600X450 609.6 457.2 17.4 14.3 31.0 23.8 - - - - 431.8 419.1
650X650 660.4 660.4 17.4 17.4 - - - - - - 495.3 495.3
650X600 660.4 609.6 17.4 17.4 - - - - - - 495.3 482.6
650X550 660.4 558.8 17.4 15.1 - - - - - - 495.3 469.9
650X500 660.4 508.0 17.4 15.1 - - - - - - 495.3 457.2
700X700 711.2 711.2 17.4 17.4 - - - - - - 520.7 520.7
700X650 711.2 660.4 17.4 17.4 - - - - - - 520.7 520.7
700X600 711.2 609.6 17.4 17.4 - - - - - - 520.7 508.0
700X550 711.2 558.8 17.4 15.1 - - - - - - 520.7 495.3
750X750 762.0 762.0 17.4 17.4 - - - - - - 558.8 558.8
750X700 762.0 711.2 17.4 17.4 - - - - - - 558.8 546.1
750X650 762.0 660.4 17.4 17.4 - - - - - - 558.8 546.1
750X600 762.0 609.6 17.4 17.4 - - - - - - 558.8 533.4
800X800 812.8 812.8 17.4 17.4 - - - - - - 596.9 596.9
800X750 812.8 762.0 17.4 17.4 - - - - - - 596.9 584.2
800X700 812.8 711.2 17.4 17.4 - - - - - - 596.9 571.5
800X650 812.8 660.4 17.4 17.4 - - - - - - 596.9 571.5
850X850 863.6 863.6 17.4 17.4 - - - - - - 635.0 635.0
850X800 863.6 812.8 17.4 17.4 - - - - - - 635.0 622.3
850X750 863.6 762.0 17.4 17.4 - - - - - - 635.0 609.6
850X700 863.6 711.2 17.4 17.4 - - - - - - 635.0 596.9
900X900 914.4 914.4 19.0 19.0 - - - - - - 673.1 673.1
900X850 914.4 863.6 19.0 17.4 - - - - - - 673.1 660.4
900X800 914.4 812.8 19.0 17.4 - - - - - - 673.1 647.7
900X750 914.4 762.0 19.0 17.4 - - - - - - 673.1 635.0

※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.

Video
New Asia One-Stop grooved Joint vs General grooved Joint Construction Comparison 01
New Asia One-Stop grooved Joint vs General grooved Joint Construction Comparison 02
Data Download
