The grooved joint method is simpler and faster than welding in the field. To relieve the stress of the piping, change the orientation of the piping or use the joint to secure the piping.
- Joint material: Spherical graphite cast iron(ASTM A536, GCD450)
- Gasket Material: EPDM
- Bolt/nut material: Carbon steel for mechanical structures
- Painting: Epoxy Powder Painting
The grooved joint method is simpler and faster than welding in the field.
To relieve the stress of the piping, change the orientation of the piping or use the joint to secure the piping.

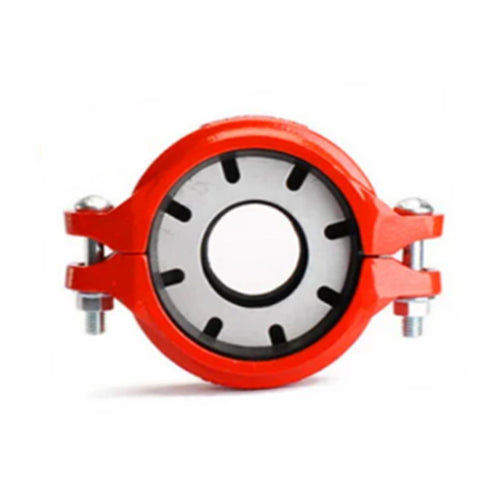

The Model XGQT1B Reducing Coupling allows direct reduction on a piping run and eliminates the need for a concentric reducer and couplings. The specially designed rubber gasket prevents the smaller pipe from telescoping into the larger pipe during vertical installation. All XGQT1B couplings are comprised of two identical housing segments, EPDM rubber gasket and plated track bolts and nuts.
XGQT1B couplings should always be installed so that the coupling bolt pads make metal to metal contact.
The Model XGQT1B couplings must not be used with an end cap, as the end cap could be sucked into the pipe by the vacuum created when a system is being drained.
Material specification
- Housing: Ductile Iron to ASTM A536, Gr. 65-45-12, min. tensile strength 65,000 psi (448 MPa).
- Surface Finish: Epoxy Coating
- Rubber Gasket: Grade EPDM approved under NSF/ANSI 61.
- Bolts & Nut: CS for machine structural use.
[ Product specification ]
| Nominal Size DN Inch |
Pipe O.D. (mm) |
Max. Working Pressure (kgf/cm2) |

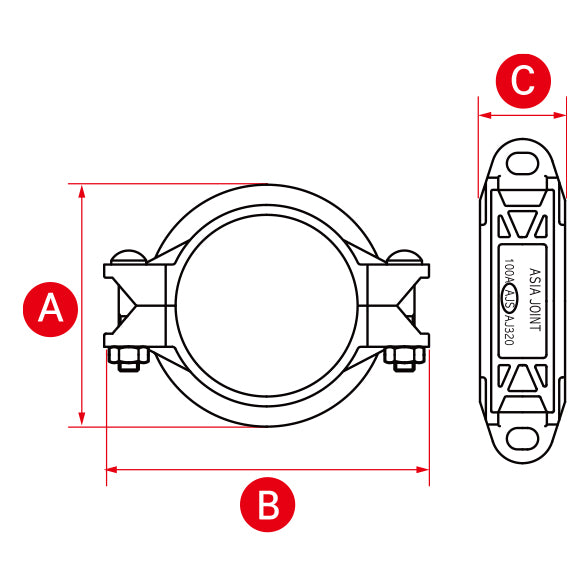

Dimensions (mm) |
Bolt/Nut | Wrench Size (mm) |
||
|---|---|---|---|---|---|---|---|
| A | B | C | |||||
| 65x50 | 76.1x60.3 | 21 | 102 | 143 | 45 | M10x65 | 17 |
| 2.1/2x2 | 73.0x60.3 | 21 | 102 | 143 | 45 | M10x65 | 17 |
| 80x50 3x2 |
88.9x60.3 | 21 | 118 | 163 | 47 | M12x70 | 19 |
| 80x65 3x2.1/2 |
88.9x73.0 | 21 | 118 | 163 | 47 | M12x70 | 19 |
| 100x50 4x2 |
114.3x60.3 | 21 | 149 | 200 | 50 | M12x70 | 19 |
| 100x65 | 114.3x76.1 | 21 | 149 | 200 | 50 | M12x70 | 19 |
| 4x2.1/2 | 114.3x73.0 | 21 | 149 | 200 | 50 | M12x70 | 19 |
| 100x80 4x3 |
114.3x88.9 | 21 | 149 | 200 | 50 | M12x70 | 19 |
| 6x3 | 168.3x88.9 | 21 | 200 | 270 | 53 | M16x85 | 24 |
| 150x100 | 165.1x114.3 | 21 | 200 | 270 | 53 | M16x85 | 24 |
| 6x4 | 168.3x114.3 | 21 | 200 | 270 | 53 | M16x85 | 24 |
| 8x6 | 219.1x168.3 | 21 | 260 | 335 | 62 | M20x110 | 30 |
※ The dimensions and Data values in the table above are subject to change to improve performance.
※ Please contact us for other sizes.
[General note]
*Maximum Working Pressure (CWP) listed is the maximum cold water pressure for general piping services tested to UL213.
*Please always refer to the latest approval data posted on the NEWASIA website.
*Warning: Piping systems must always be depressurized and drained before attempting disassembly and or removal of any components.
*The 2 Year Limited Warranty applies to manufacturing defects only and does not cover severe service/temperature applications or wear parts.
*NEWASIA reserves the right to change specifications, designs and or standard without notice and without incurring any obligations.
